Engine displacement
125
2
Model
ATLANTIC
3
Year
2011
4
Trim
Atlantic E3
5
Parts Catalog
Fron fork II
6

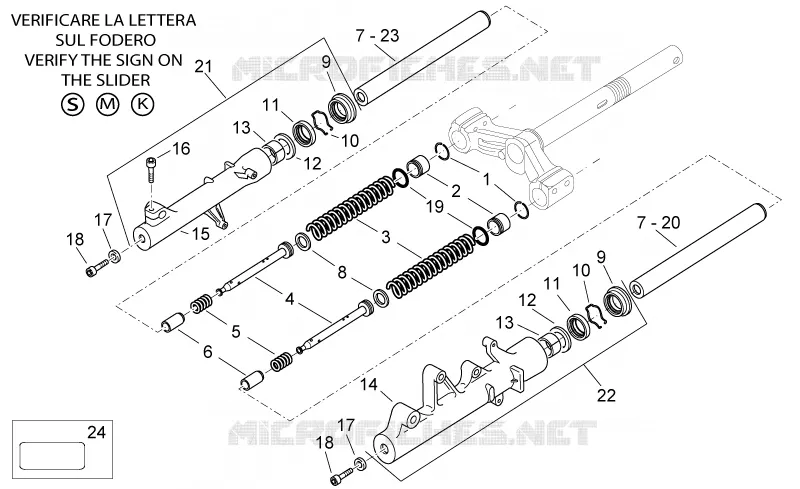

Parts Diagram
Parts Catalog
Crankshaft assy
by
Starter motor I
Fron fork II
1
2
3
4
5
6
7
7
8
9
9
10
10
11
11
12
12
13
13
14
15
16
17
17
18
18
19
20
21
22
23
24
1
Stop ring
AP8123760
Not Available
1
Circlip
AP8203950
$3,65 Unit Price incl. VAT
1
Stop ring
AP8163302
Not Available
2
Plug cpl.
600121
Not Available
2
Cover
AP8163300
Not Available
2
Cover
AP8123761
$8,91 Unit Price incl. VAT
3
Spring
AP8163440
Not Available
3
Spring
AP8163223
Not Available
3
Spring
AP8123699
$29,51 Unit Price incl. VAT
4
Shock absorber
AP8163224
$29,51 Unit Price incl. VAT
4
Shock absorber
AP8163438
$27,67 Unit Price incl. VAT
4
Shock absorber
AP8163267
$35,51 Unit Price incl. VAT
5
Spring
AP8123764
$5,38 Unit Price incl. VAT
5
Return spring
AP8123708
$8,91 Unit Price incl. VAT
5
Return spring
AP8163291
$5,38 Unit Price incl. VAT
6
Stroke limit stop
AP8163289
$6,30 Unit Price incl. VAT
6
Stroke limit stop
AP8123701
$13,53 Unit Price incl. VAT
6
Stroke limit stop
AP8123765
$6,30 Unit Price incl. VAT
7
Sleeve
AP8123907
Not Available
7
Sleeve
AP8163290
$32,18 Unit Price incl. VAT
8
Ring
AP8123776
$29,76 Unit Price incl. VAT
8
Ring
AP8123754
$5,38 Unit Price incl. VAT
8
Ring
AP8163439
Not Available
9
Dust cover
AP8123767
$7,23 Unit Price incl. VAT
9
Dust cover
600127
$21,26 Unit Price incl. VAT
9
Dust cover
AP8163298
$6,38 Unit Price incl. VAT
10
Stop ring
AP8163297
Not Available
10
Stop ring
600125
$3,65 Unit Price incl. VAT
10
Stop ring
AP8123921
$3,65 Unit Price incl. VAT
11
Oil seal
AP8123769
$8,65 Unit Price incl. VAT
11
Oil seal
AP8163296
$5,53 Unit Price incl. VAT
11
Gasket ring
600126
$25,10 Unit Price incl. VAT
12
Oil seal washer
AP8123909
Not Available
12
Cup
600128
$3,65 Unit Price incl. VAT
12
Oil seal washer
AP8163295
$3,65 Unit Price incl. VAT
13
Bush
AP8123910
$6,30 Unit Price incl. VAT
13
Bush
AP8203447
Not Available
13
Bush
AP8163294
Not Available
14
LH sleeve
AP8163437
Not Available
14
LH sleeve
AP8163225
$289,42 Unit Price incl. VAT
15
RH sleeve
AP8163226
Not Available
15
RH sleeve
AP8163436
$161,69 Unit Price incl. VAT
16
screw
AP8121183
Not Available
16
Hex socket screw M6x20
AP8223054
$3,65 Unit Price incl. VAT
16
screw M6x20
AP8203796
$5,20 Unit Price incl. VAT
17
Special washer
856046
$0,43 Unit Price incl. VAT
17
Seal washer
AP8163435
Not Available
17
Seal washer
AP8203572
$3,65 Unit Price incl. VAT
18
screw M8x30
AP8163227
Not Available
18
screw M10x30
AP8163285
$3,65 Unit Price incl. VAT
18
Screw M8x30
AP8203570
Not Available
19
O-ring
AP8163301
$3,65 Unit Price incl. VAT
19
O-ring
AP8123775
Not Available
20
LH hub
AP8163031
$289,42 Unit Price incl. VAT
21
RH sleeve cpl.
AP8163270
Not Available
22
LH sleeve cpl.
AP8163271
Not Available
23
RH hub
AP8163030
$289,42 Unit Price incl. VAT
24
Brake disc stop decal
AP8166195
Not Available
