1
Engine displacement
500
2
Model
ATLANTIC
3
Year
2003
4
Trim
Atlantic
5
Parts Catalog
Frame
6

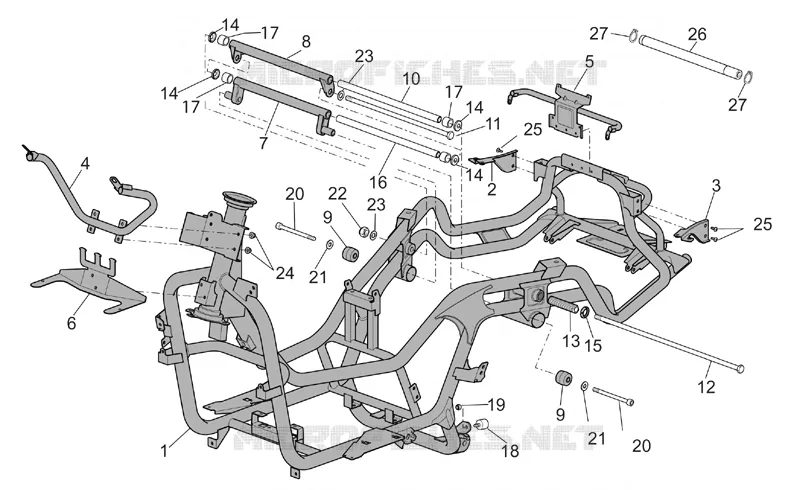

Parts Diagram
Parts Catalog
by
Foot rests
Frame
1
2
3
4
5
6
7
8
9
9
10
11
12
13
14
14
14
14
15
16
17
17
17
18
19
20
20
21
21
22
23
23
24
25
25
26
27
27
1
Frame with electro-coating
AP8146423
Not Available
1
Frame with electro-coating
AP8146753
Not Available
2
RH plate
AP8134832
Not Available
3
LH plate
AP8134709
Not Available
4
Splash guard support
AP8134708
Not Available
5
Support clamp
AP8134703
Not Available
6
Support clamp
AP8134715
Not Available
7
Engine connecting element
AP8146416
Not Available
8
Frame coupling rod
AP8146417
Not Available
9
Pad
AP8144372
$13,53 Unit Price incl. VAT
10
Connecting rod spacer
AP8121531
Not Available
11
Pin
AP8121481
Not Available
12
Pin
AP8121478
Not Available
13
Adjustment bush
AP8121517
Not Available
14
Dust cover
AP8121551
Not Available
15
Ring nut
AP8121572
Not Available
16
Connecting rod spacer
AP8121477
Not Available
17
Sliding bush
AP8121311
$4,36 Unit Price incl. VAT
18
Stand end stop
AP8144509
$5,38 Unit Price incl. VAT
19
Low self-locking nut
AP8150430
$0,16 Unit Price incl. VAT
20
Hex socket screw M12 X 108
AP8150338
$3,65 Unit Price incl. VAT
21
Washer 13x24x2,5*
AP8150101
$3,65 Unit Price incl. VAT
22
Low self-locking nut M14x1,5*
AP8152030
Not Available
23
Washer 15x28x2,5*
AP8150208
$3,65 Unit Price incl. VAT
24
Self-locking nut M6
AP8152299
$0,34 Unit Price incl. VAT
25
Hex socket screw
AP8152057
$3,65 Unit Price incl. VAT
26
Spacer
AP8121519
Not Available
27
Circlip d20
AP8121552
Not Available
