Engine displacement
500
2
Model
ATLANTIC
3
Year
2003
4
Trim
Atlantic
5
Parts Catalog
Electrical system II
6

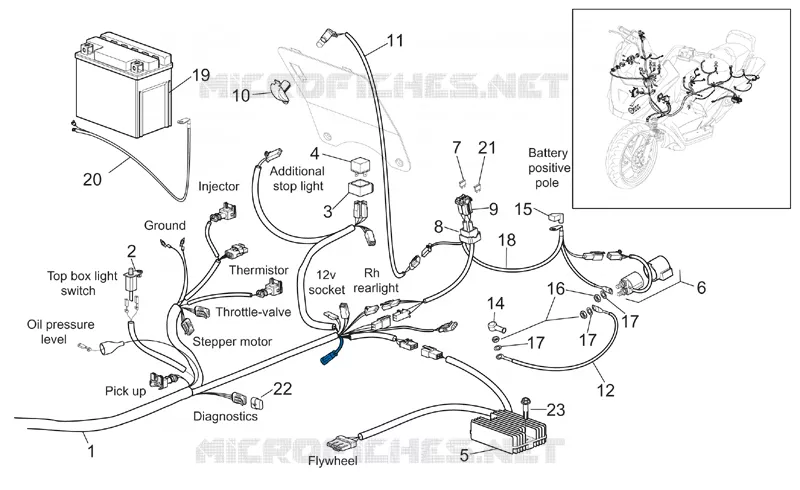

Parts Diagram
Parts Catalog
Electrical system I
by
Lock hardware kit
Electrical system II
1
2
3
4
5
6
7
8
9
10
11
12
14
15
16
17
17
17
18
19
20
21
22
23
1
Main wiring harness
AP8127027
Not Available
1
Main wiring harness
AP8127530
Not Available
2
Top box light switch
AP8212696
Not Available
3
Relay rubber
AP8220546
$4,62 Unit Price incl. VAT
4
Starter relay
AP8224057
$10,00 Unit Price incl. VAT
5
Voltage regulator
AP8127205
Not Available
6
Starter relay 12V-150A
AP8124636
$21,09 Unit Price incl. VAT
7
Fuse 30a
AP8124273
Not Available
8
Rubber fuse box
AP8120754
$6,30 Unit Price incl. VAT
9
Rubber fuse box
AP8112811
$6,40 Unit Price incl. VAT
10
Light window
AP8212733
$5,38 Unit Price incl. VAT
11
Plate light wiring
AP8124765
Not Available
12
Relay-starter motor cable
AP8127028
Not Available
13
Socket
AP8124768
Not Available
14
Terminal cap
AP8120218
$5,38 Unit Price incl. VAT
15
Positive pole cap
AP8112940
$5,38 Unit Price incl. VAT
16
Nut M6
AP8150026
$0,16 Unit Price incl. VAT
17
Spring washer 6,4x11x0,5*
AP8150429
Not Available
18
Fuse cable
AP8127268
Not Available
19
Battery
AP8127073
Not Available
20
Ground-battery lead
AP8127267
Not Available
20
Ground-battery lead
AP8127475
Not Available
21
Fuse 20A
AP8112506
Not Available
22
Plug connector
AP8104807
Not Available
23
Screw w/ flange M6x35
AP8152282
$0,51 Unit Price incl. VAT
