1
Engine displacement
500
2
Model
ATLANTIC
3
Year
2002
4
Trim
Atlantic
5
Parts Catalog
Air box
6
Parts Diagram
Parts Catalog
Fuel tank
by
Fuel vapour recover system

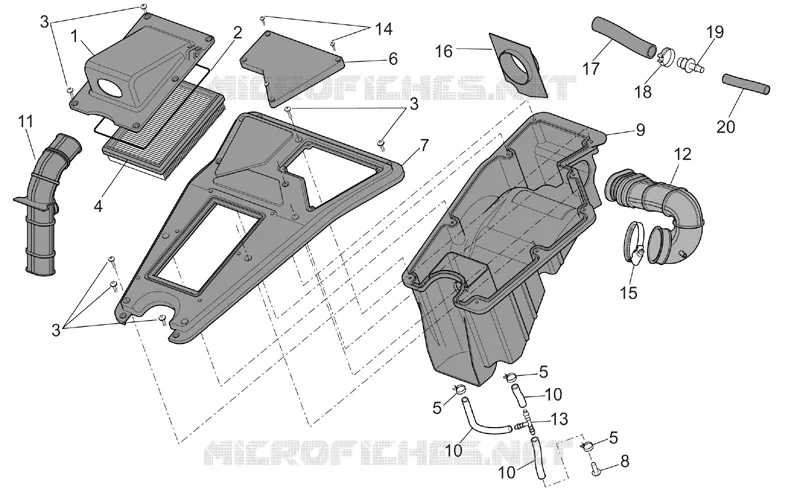

Air box
1
2
3
3
3
4
5
5
5
6
7
8
9
10
10
10
11
12
13
14
15
16
17
18
19
20
1
Filter cover
AP8149438
Not Available
2
Gasket D3
AP8120615
$5,73 Unit Price incl. VAT
3
Phillips screw, SWP M5x20
AP8152329
$0,69 Unit Price incl. VAT
4
Air filter
AP8104242
$14,99 Unit Price incl. VAT
5
Hose clamp D10,1
AP8101595
$0,32 Unit Price incl. VAT
6
Cover
AP8158192
Not Available
7
Filter housing cover
AP8149437
Not Available
8
Plug
AP8120876
$5,38 Unit Price incl. VAT
9
Filter housing base
AP8168014
Not Available
9
Filter housing base
AP8149428
Not Available
10
Fuel pipe 6x10
AP8144038
$32,24 Unit Price incl. VAT
11
Intake hose
AP8144442
$10,76 Unit Price incl. VAT
12
Hose
AP8144371
Not Available
13
3-way union
AP8144303
$8,16 Unit Price incl. VAT
14
Self-tap screw 3,9x14
AP8150413
$0,08 Unit Price incl. VAT
15
Hose clamp D50-70x8*
AP8102401
$3,70 Unit Price incl. VAT
16
Protection
AP8158320
Not Available
17
Fuel pipe
AP8220597
Not Available
18
Hose clip D22x8,6*
AP8201169
$5,38 Unit Price incl. VAT
19
2-way union
AP8102576
$5,38 Unit Price incl. VAT
20
Fuel pipe 8x13
AP8120905
Not Available
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
