1
Engine displacement
500
2
Model
ATLANTIC
3
Year
2002
4
Trim
Atlantic
5
Parts Catalog

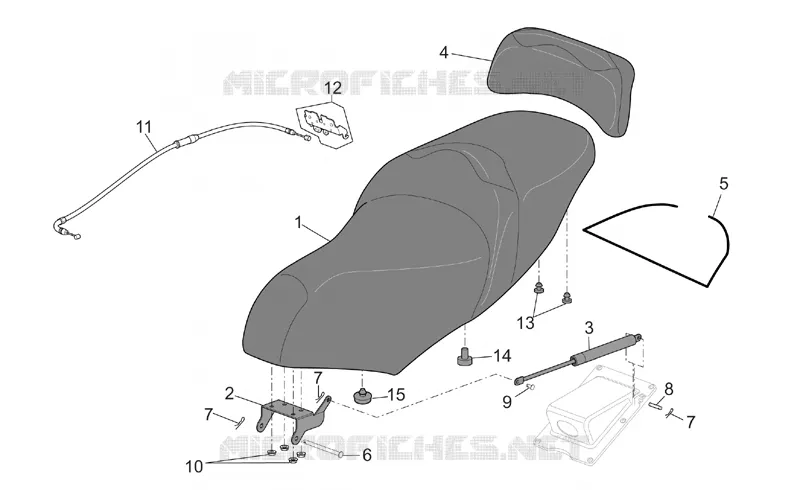

Saddle unit
6
Parts Diagram
Parts Catalog
Undersaddle
by
Rear body I
Saddle unit
1
2
3
4
5
6
7
7
7
8
9
10
11
12
13
14
15
1
Driver saddle, grey
AP8129304
Not Available
1
Driver saddle
AP8129370
Not Available
1
Driver saddle, grey
AP8129332
Not Available
1
Driver saddle
AP8129437
Not Available
2
Saddle hinge
AP8149430
Not Available
3
Saddle shock absorber
AP8163171
Not Available
4
Cushion, grey
AP8129438
Not Available
4
Cushion, black
AP8129371
Not Available
4
Cushion, grey
AP8129333
Not Available
4
Cushion, grey
AP8129302
Not Available
5
Gasket
AP8144517
Not Available
6
Pin
AP8121479
Not Available
7
Split pin
AP8201643
$5,38 Unit Price incl. VAT
8
Pin
AP8121534
$5,38 Unit Price incl. VAT
9
Pin
AP8121533
$5,38 Unit Price incl. VAT
10
Self-locking nut M6
AP8152299
$0,34 Unit Price incl. VAT
11
Lock cable
AP8104440
$19,17 Unit Price incl. VAT
12
Saddle closing plate
AP8102947
$15,98 Unit Price incl. VAT
13
Rubber spacer
AP8144087
$5,38 Unit Price incl. VAT
14
Front saddle support rubber
AP8144089
$5,38 Unit Price incl. VAT
15
Rubber spacer
AP8126702
$1,68 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
