1
Engine displacement
750
2
Model
DORSODURO
3
Year
2008
4
Trim
Dorsoduro ABS
5
Parts Catalog
Clutch I
6
Parts Diagram
Parts Catalog
Clutch II
by
Handlebar - Controls

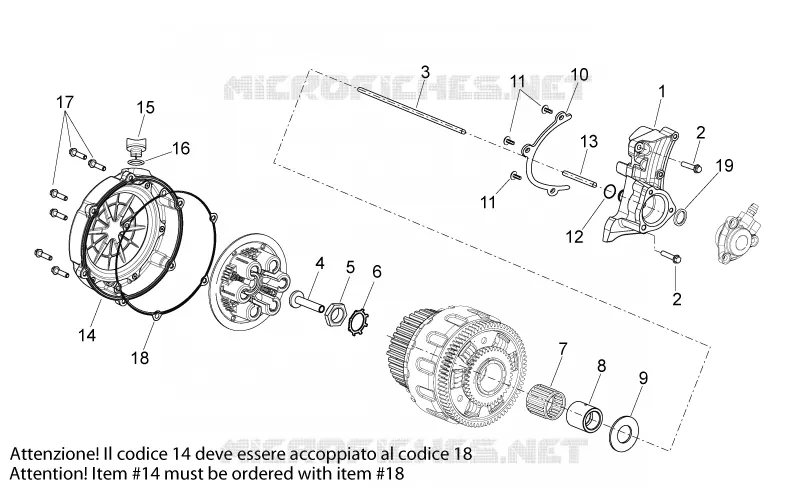

Clutch I
19
18
17
16
15
14
13
11
11
10
9
8
7
6
5
4
3
2
2
1
1
Clutch disengagement flange GREY
872850
Not Available
1
Clutch disengagement flange BLACK
B013074
$107,59 Unit Price incl. VAT
2
Screw w/ flange
872421
$0,09 Unit Price incl. VAT
3
Clutch shaft
874660
$3,78 Unit Price incl. VAT
4
Rod
873127
$40,51 Unit Price incl. VAT
5
Nut
876790
$8,12 Unit Price incl. VAT
6
Safety washer
876296
$1,30 Unit Price incl. VAT
7
Roller cage 35X40X35,8
877138
Not Available
7
Roller cage 35X40X35,8
974361
$17,26 Unit Price incl. VAT
8
Spacer
873543
$19,97 Unit Price incl. VAT
8
Spacer
876477
Not Available
9
Washer
974320
$2,11 Unit Price incl. VAT
10
Chain guide
873117
Not Available
11
Screw
831153
$0,05 Unit Price incl. VAT
12
0
871609
$0,24 Unit Price incl. VAT
13
Pawl clutch
874191
$2,02 Unit Price incl. VAT
14
Complete clutch cover
8725174
Not Available
14
Clutch cover
1A004819
Not Available
14
Clutch cover
880779
Not Available
14
Clutch cover cpl., black
B0136345
$137,72 Unit Price incl. VAT
15
Oil load plug
873995
$1,24 Unit Price incl. VAT
16
Gasket ring OR
974230
$0,05 Unit Price incl. VAT
17
Screw w/ flange
871094
$0,76 Unit Price incl. VAT
17
screw M6x35
414838
$0,67 Unit Price incl. VAT
18
Clutch crancase gasket
B013607
$14,18 Unit Price incl. VAT
18
Paper gasket
875725
Not Available
18
O-ring
871095
$21,03 Unit Price incl. VAT
19
Gasket ring 8x16x7
825577
$3,60 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
