1
Engine displacement
750
2
Model
DORSODURO
3
Year
2008
4
Trim
Dorsoduro ABS
5
Parts Catalog
Fron fork II
6

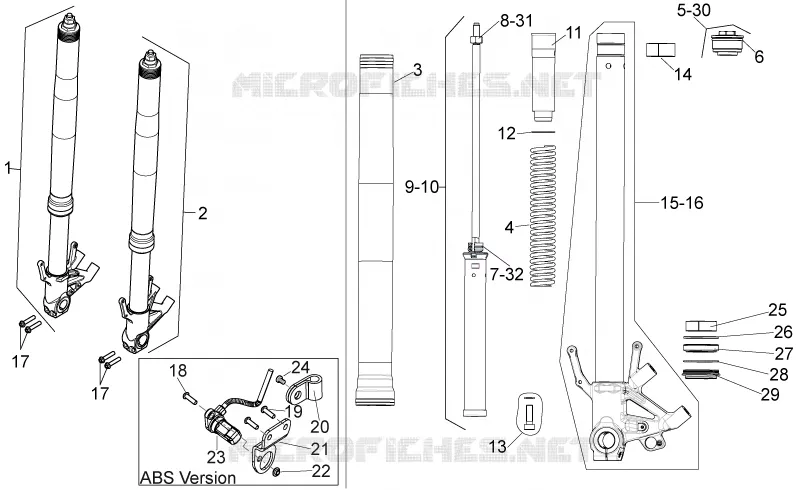

Parts Diagram
Parts Catalog
Fuel pump
by
Water pump I
Fron fork II
32
31
30
29
28
27
26
25
24
23
22
21
20
19
18
17
17
16
15
14
13
12
11
10
9
8
7
6
5
4
3
2
1
1
RH hub cpl.
897070
Not Available
2
LH hub cpl.
897071
Not Available
3
Sleeve
897328
Not Available
4
Spring
897329
$46,43 Unit Price incl. VAT
5
RH sleeve plug
898795
Not Available
6
O-ring
897335
$26,92 Unit Price incl. VAT
7
Circlip DX
898522
$5,06 Unit Price incl. VAT
8
Nut
898797
Not Available
9
LH plunger, complete
898793
$242,97 Unit Price incl. VAT
10
RH plunger, complete
898796
$189,18 Unit Price incl. VAT
11
Preload tube
897332
$13,28 Unit Price incl. VAT
12
Washer
897336
$5,73 Unit Price incl. VAT
13
Adjuster rod
898794
$8,93 Unit Price incl. VAT
14
Spring guide bush
897341
$17,06 Unit Price incl. VAT
15
Hub+RH fork leg
898521
$302,03 Unit Price incl. VAT
16
Hub+LH fork leg
898520
$302,03 Unit Price incl. VAT
17
Screw w/ flange
AP8152283
$0,32 Unit Price incl. VAT
18
Screw w/ flange M5x15
AP8152273
$0,16 Unit Price incl. VAT
19
Hex socket screw
AP8150298
$3,65 Unit Price incl. VAT
20
Fairlead
859777
$1,01 Unit Price incl. VAT
21
Front plate
856557
$2,92 Unit Price incl. VAT
22
Self-locking nut M5
AP8152306
$3,65 Unit Price incl. VAT
23
Sensor ABS
859792
Not Available
24
Screw M4x6
AP8201749
$0,16 Unit Price incl. VAT
25
Bush
897342
$20,45 Unit Price incl. VAT
26
Special washer
897343
$7,75 Unit Price incl. VAT
27
Oil seal
897344
$24,96 Unit Price incl. VAT
28
Circlip
897339
$45,71 Unit Price incl. VAT
29
Dust cover
897337
$23,27 Unit Price incl. VAT
30
LH sleeve plug
897330
$133,57 Unit Price incl. VAT
31
Nut
897331
$15,24 Unit Price incl. VAT
32
Stop ring
897340
$6,41 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
