1
Engine displacement
250
2
Model
LEONARDO
3
Year
2000
4
Trim
Leonardo (engine Yamaha)
5
Parts Catalog

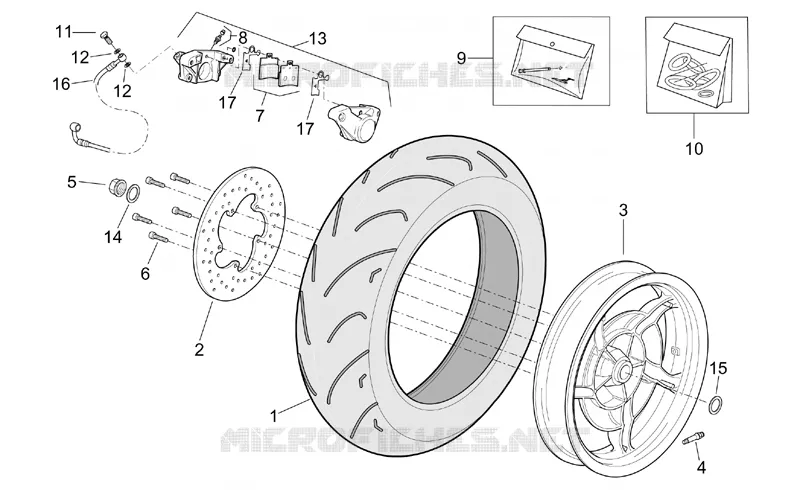

Rear wheel - Rear caliper
6
Parts Diagram
Parts Catalog
Front brake caliper
by
Lights
Rear wheel - Rear caliper
1
2
3
4
5
6
7
8
9
10
11
12
12
13
14
15
16
17
17
1
Tyre
0000000
Not Available
2
Rear brake disc
AP8113800
Not Available
3
Rear wheel
AP8108952
Not Available
3
Rear wheel
AP8208602
Not Available
4
Tubeless tyre valve
AP8202168
$5,38 Unit Price incl. VAT
5
DAX flange nut M14x1,5
AP8152244
$4,36 Unit Price incl. VAT
6
Screw w/ flange M6x20
AP8152279
$0,51 Unit Price incl. VAT
7
Pads pair
AP8113869
$43,88 Unit Price incl. VAT
8
Bleeder+cap
AP8213458
Not Available
9
Pin+Brake spring
AP8213468
Not Available
10
Brake caliper rev. kit
AP8213467
$33,81 Unit Price incl. VAT
11
Oil pipe screw
AP8113003
$3,65 Unit Price incl. VAT
12
Washer 10x14x1,6*
AP8113004
$0,34 Unit Price incl. VAT
13
Rear brake caliper D32
AP8113846
Not Available
14
Belleville spring
AP8150466
$5,38 Unit Price incl. VAT
15
Rear wheel washer
AP8121306
Not Available
16
Rear brake hose
AP8113711
Not Available
17
F.antiwhistle plate-pair
AP8113870
Not Available
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
