1
Engine displacement
250
2
Model
LEONARDO
3
Year
2000
4
Trim
Leonardo (engine Yamaha)
5
Parts Catalog

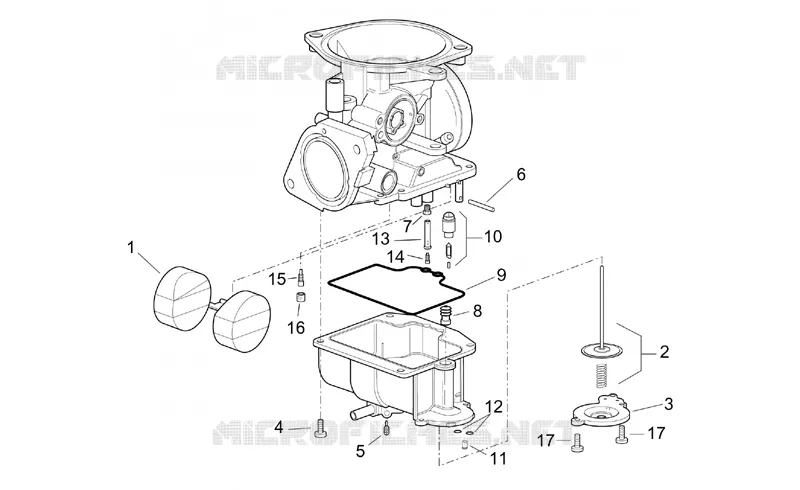

Carburettor III
6
Parts Diagram
Parts Catalog
Carburettor II
by
Engine
Carburettor III
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
17
1
Float
AP8122483
Not Available
2
Diaphragm cpl.
AP8122478
Not Available
3
Cover
AP8122466
Not Available
4
screw
AP8122600
Not Available
5
Air screw
AP8122596
Not Available
6
Pin
AP8122561
Not Available
7
Metering rod lock
AP8122524
Not Available
8
Rubber spacer
AP8122481
Not Available
9
Gasket
AP8122494
Not Available
10
Needle valve assy
AP8122523
Not Available
11
Control valve cpl.
AP8122435
Not Available
12
O-ring
AP8122542
Not Available
13
Needle valve
AP8122525
Not Available
14
Main jet
AP8122516
Not Available
15
Idle jet
AP8122517
Not Available
16
Cover
AP8122581
Not Available
17
screw
AP8122598
Not Available
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
