1
Engine displacement
250
2
Model
LEONARDO
3
Year
2000
4
Trim
Leonardo (engine Yamaha)
5
Parts Catalog
Valve control
6

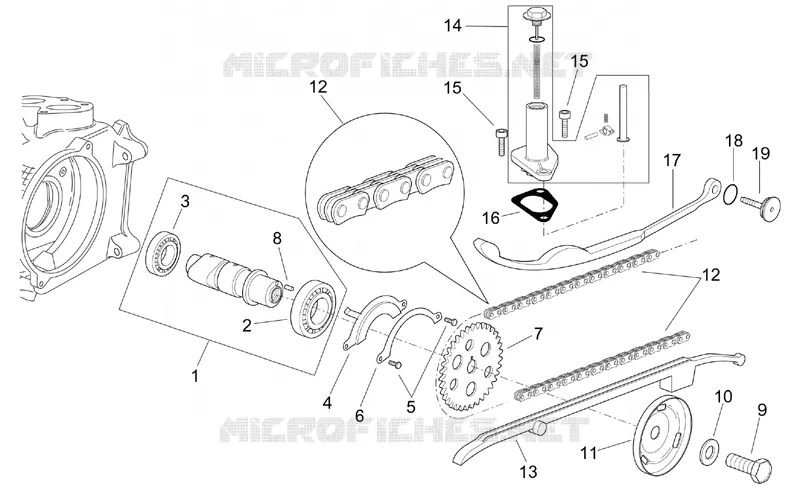

Parts Diagram
Parts Catalog
Valves
by
Engine head
Valve control
1
2
3
4
5
6
7
8
9
10
11
12
12
13
14
15
15
16
17
18
19
1
Camshaft cpl.
AP8122432
Not Available
2
Bearing
AP8125824
Not Available
3
Ball bearing
AP8122426
Not Available
4
plate
AP8122577
Not Available
5
screw
AP8122407
Not Available
6
Nut lock
AP8122641
Not Available
7
Gear
AP8122625
Not Available
8
Pin
AP8122566
Not Available
9
screw
AP8122402
Not Available
10
Washer
AP8122642
Not Available
11
Cup
AP8122579
Not Available
12
Camshaft chain
AP8122434
Not Available
13
Low.timing system chain guide
AP8122505
Not Available
14
Timing system chain tens.cpl.
AP8122632
Not Available
15
screw
AP8122408
Not Available
16
Chain tensioner gasket
AP8122496
Not Available
17
Up.timing system chain guide
AP8122506
Not Available
18
O-ring D14,5x1,9
AP8122551
Not Available
19
screw
AP8122401
Not Available
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
