1
Engine displacement
250
2
Model
LEONARDO
3
Year
2000
4
Trim
Leonardo (engine Yamaha)
5
Parts Catalog

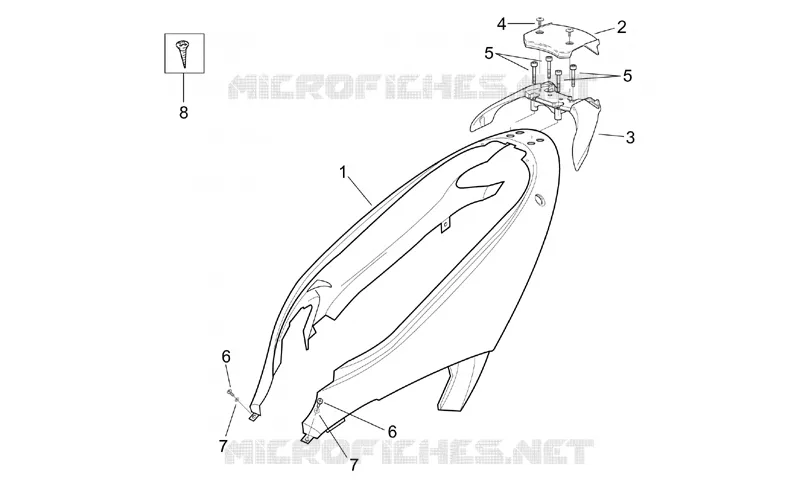

Rear body - Rear fairing
6
Parts Diagram
Parts Catalog
Saddle and helmet compartment
by
Rear body - Plate holder
Rear body - Rear fairing
1
2
3
4
5
5
6
6
7
7
8
1
Rear fairing, sh.black
AP8148099
Not Available
1
Rear fairing, ch.blue
AP8149755
Not Available
1
Rear fairing, s.yellow
AP8148335
Not Available
1
Rear fairing, sh.black
AP8149749
Not Available
1
Rear fairing, ch.blue
AP8148871
Not Available
1
Rear fairing, ice green
AP8148982
Not Available
1
Rear fairing, grey
AP8149752
Not Available
1
Rear fairing, em.blue
AP8139944
Not Available
1
Rear fairing, m. red
AP8148317
Not Available
1
Rear fairing, grey
AP8148374
Not Available
2
Handle cover, grey
AP8139498
$4,33 Unit Price incl. VAT
2
Handle cover, grey
AP8149632
Not Available
3
Pillion grab bar, grey
AP8149651
Not Available
3
Pillion grab bar, grey
AP8139925
Not Available
4
Screw w/ flange M5x12
AP8152302
Not Available
5
Hex socket screw M8x50
AP8150277
$0,42 Unit Price incl. VAT
6
Screw 5,5x22*
AP8150425
$3,65 Unit Price incl. VAT
7
Washer 15x5,5X1,2
AP8150382
$0,16 Unit Price incl. VAT
8
Self-tap screw 3,9x14
AP8150413
$0,08 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
