Rear wheel FOR Dorsoduro FROM 2010

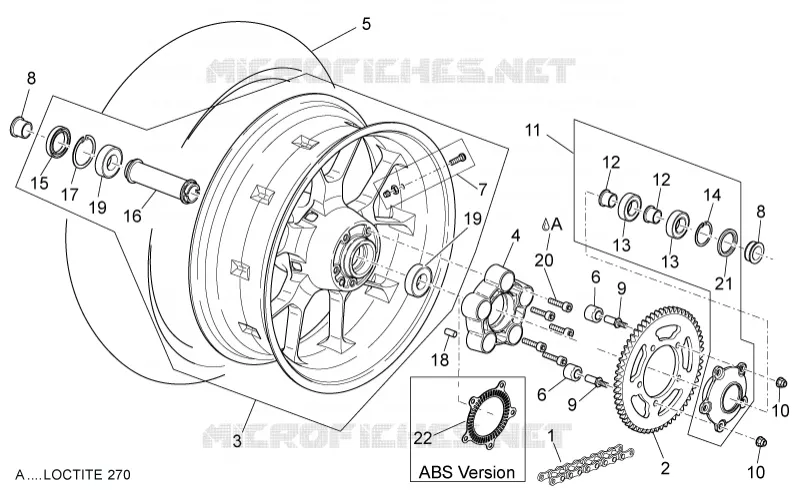

Rear wheel

1

Chain cpl conn.link

851612

$133,53 Unit Price incl. VAT

2

Chain ring

AP8107145

Not Available

3

Rear wheel, black 6"x17"

896756

$304,50 Unit Price incl. VAT

3

Rear wheel, black 6"x17"

860694

$219,66 Unit Price incl. VAT

4

Rear wheel spring drive holder

AP8128231

Not Available

5

Rear tyre

85157R

Not Available

6

Flexible coupling rubber

AP8125731

Not Available

7

Tubeless tyre valve

AP8101744

$6,30 Unit Price incl. VAT

8

Rear wheel spacer

AP8121592

$15,31 Unit Price incl. VAT

9

Pin

B045033

$20,46 Unit Price incl. VAT

10

Nut

564878

$2,99 Unit Price incl. VAT

11

Crown holder cpl.

AP8125730

Not Available

12

Spring drive spacer

AP8125732

$29,76 Unit Price incl. VAT

13

Bearing 30x55x13

AP8110081

$16,34 Unit Price incl. VAT

14

Inside circlip d55

AP8121212

$7,81 Unit Price incl. VAT

15

Gasket ring 38x52x7

AP8125838

$8,01 Unit Price incl. VAT

16

Internal spacer

AP8128170

$36,58 Unit Price incl. VAT

17

Circlip

AP8125788

$3,65 Unit Price incl. VAT

17

Snap ring d52

AP8125839

$8,01 Unit Price incl. VAT

18

Pin 10x20

AP8150463

$3,65 Unit Price incl. VAT

19

Bearing 6205-2rs1 25x52x15

AP8110093

$15,98 Unit Price incl. VAT

19

Bearing 6205-2rs1 25x52x15

AP8106806

$20,52 Unit Price incl. VAT

20

Hex socket screw M10x30

AP8150195

$0,67 Unit Price incl. VAT

21

Gasket ring 38x55x7

AP8121213

$8,01 Unit Price incl. VAT

22

Phonic wheel ABS

890960

$18,18 Unit Price incl. VAT

The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
