Front wheel FOR Dorsoduro FROM 2010

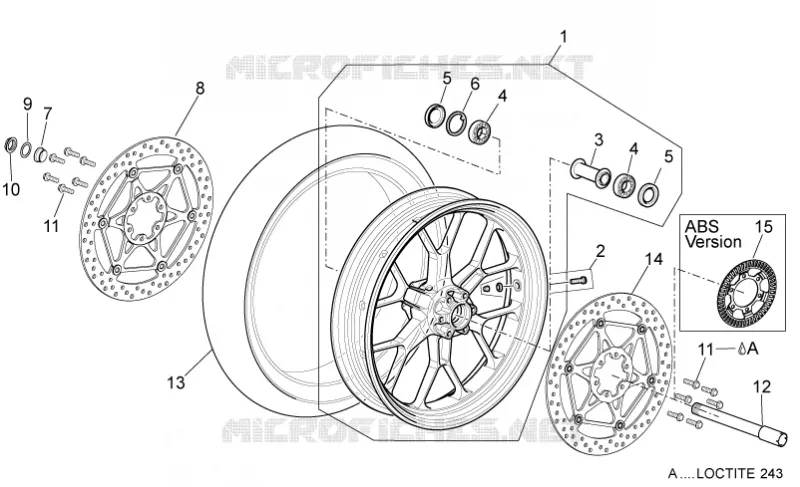

Front wheel

1

Front wheel, black

AP8128228

$550,39 Unit Price incl. VAT

1

Front wheel, black

896754

$731,58 Unit Price incl. VAT

2

Tubeless tyre valve

AP8101744

$6,30 Unit Price incl. VAT

3

Internal spacer

AP8128169

$29,51 Unit Price incl. VAT

4

Ball bearing 25x47x12

AP8125777

$12,81 Unit Price incl. VAT

4

Bearing 25x47x12

AP8110094

$15,23 Unit Price incl. VAT

5

Gasket ring 30x47x7

AP8125841

$3,70 Unit Price incl. VAT

5

Gasket ring 30x47x7

AP8125773

$2,58 Unit Price incl. VAT

6

Snap ring d47

AP8125842

$0,67 Unit Price incl. VAT

6

Circlip

AP8125779

$3,65 Unit Price incl. VAT

7

Front RH whe.ou.spacer

AP8125728

$7,42 Unit Price incl. VAT

8

Front brake disc DX

896011

Not Available

8

RH front brake disc

B044279

Not Available

9

Washer 25,2x36x1

AP8152323

$3,70 Unit Price incl. VAT

10

Wheel spindle nut

AP8152335

$8,12 Unit Price incl. VAT

11

Screw w/ flange M8x20

AP8152286

$0,25 Unit Price incl. VAT

12

Front wheel spindle

AP8125827

Not Available

13

Front tyre 120/70 ZR 17"

85156R

$380,03 Unit Price incl. VAT

14

Front brake disc SX

896012

Not Available

14

Front brake disc SX

B044280

Not Available

15

Phonic wheel

AP8128189

$106,52 Unit Price incl. VAT

The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
