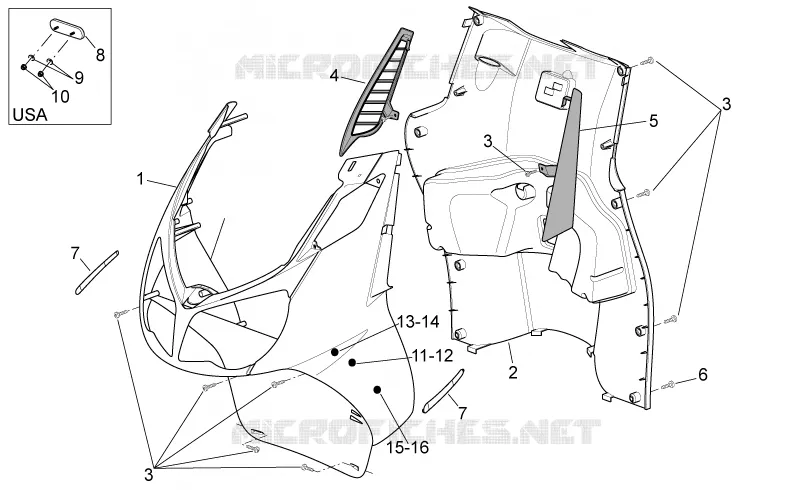

Front body - Internal shield FOR Sport City Cube IE E3 FROM 2012

Front body - Internal shield

1

External fairing, black

AP8184459

$420,82 Unit Price incl. VAT

1

External fairing, silver

AP8269011

Not Available

1

External fairing, white glam

AP8269316

Not Available

1

External fairing, silver

86030100XE4

$556,85 Unit Price incl. VAT

1

External fairing, grey

86030100XEL

Not Available

1

External fairing, black diablo

86030100XN6

Not Available

1

External fairing, black

86030100XN5

Not Available

1

External fairing, white

86030100BM

Not Available

1

External fairing, blue

AP8269012

Not Available

1

External fairing, blue

86030100XD2

Not Available

1

External fairing, black

AP8269283

Not Available

1

External fairing, grey

AP8269013

Not Available

2

Internal shield, black

AP8184258

Not Available

3

Self-tap screw 3,9x14

AP8150413

$0,08 Unit Price incl. VAT

4

RH Water cooler grille, black

890155

$1,53 Unit Price incl. VAT

5

LH Water cooler grille, black

890156

$1,53 Unit Price incl. VAT

6

Screw 4,2x25*

AP8150423

$3,65 Unit Price incl. VAT

7

Bumper

AP8179730

$17,07 Unit Price incl. VAT

8

Reflector, amber

AP8124719

$8,16 Unit Price incl. VAT

9

Washer 4,3x16*

AP8150159

$3,65 Unit Price incl. VAT

10

Nut M4

AP8150204

$0,51 Unit Price incl. VAT

11

Sticker RH 300 Cube

897881

$3,24 Unit Price incl. VAT

11

Sticker LH 300 Cube

896923

$2,57 Unit Price incl. VAT

11

Sticker LH 300 Cube

896800

$2,67 Unit Price incl. VAT

11

Sticker LH 300 Cube

896930

$2,67 Unit Price incl. VAT

12

Sticker LH 300 Cube

897882

$3,24 Unit Price incl. VAT

12

Sticker RH 300 Cube

896922

$2,57 Unit Price incl. VAT

12

Sticker RH 300 Cube

896799

$2,67 Unit Price incl. VAT

12

Sticker RH 300 Cube

896929

$2,67 Unit Price incl. VAT

13

RH Name plate

897870

$0,86 Unit Price incl. VAT

14

LH Name plate

897871

$0,86 Unit Price incl. VAT

15

Sticker RH "N"

897872

$5,06 Unit Price incl. VAT

16

Sticker LH "N"

897873

$5,06 Unit Price incl. VAT

The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
