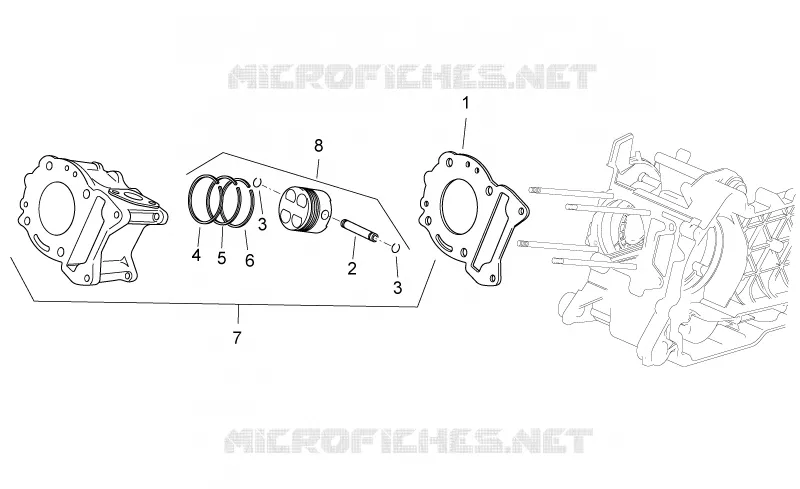

Cylinder
8
7
6
5
4
3
3
2
1
1
Cylinder base gasket 0,4 mm
875112
$4,04 Unit Price incl. VAT
1
Cylinder base gasket 0,8 mm
875114
$4,62 Unit Price incl. VAT
1
Cylinder base gasket 0,6 mm
875113
$4,88 Unit Price incl. VAT
2
Piston pin
829529
$8,12 Unit Price incl. VAT
2
Piston pin
875005
$10,82 Unit Price incl. VAT
3
Snap ring
875096
$0,19 Unit Price incl. VAT
4
Compression ring Ø 75x1,5
874958
Not Available
4
Piston rings unit
843228
$65,00 Unit Price incl. VAT
5
Oil scraper ring Ø 75x1,2
874960
$6,11 Unit Price incl. VAT
5
Piston rings unit
843228
$65,00 Unit Price incl. VAT
6
Oil scraper ring Ø 75x2,5
876367
Not Available
6
Piston rings unit
843228
$65,00 Unit Price incl. VAT
7
Cyl.pist.-wrist pin assy unit
876457
$215,47 Unit Price incl. VAT
7
Cylinder with piston
843517
$232,14 Unit Price incl. VAT
8
Complete piston cat.A
8435190001
$117,75 Unit Price incl. VAT
8
Complete piston cat.C
8435190003
$90,56 Unit Price incl. VAT
8
Piston + piston pin Cat.2
8764580002
$57,33 Unit Price incl. VAT
8
Piston + piston pin Cat.1
8764580001
$53,36 Unit Price incl. VAT
8
Piston + piston pin Cat.3
8764580003
$57,33 Unit Price incl. VAT
8
Complete piston cat.D
8435190004
$89,82 Unit Price incl. VAT
8
Complete piston cat.B
8435190002
$89,82 Unit Price incl. VAT
8
Piston + piston pin Cat.4
8764580004
$53,36 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
