1
Engine displacement
900
2
Model
SHIVER
3
Year
2017
4
Trim
Shiver 900 ABS Euro 4
5
Parts Catalog
Rear master cylinder
6
Parts Diagram
Parts Catalog
Front brake caliper
by
Rear brake caliper
Rear master cylinder
1
2
3
3
4
5
5
6
7
8
9
10
11
12
13
14
15
16
18
19
20
21
22
22
1
Maît.cyl. frein AR
895061
$94,67 Unit Price incl. VAT
2
PIVOT
GU56777300
$37,35 Unit Price incl. VAT
3
Levier de frein AR
895224
$137,34 Unit Price incl. VAT
4
Rear brake lever pin
AP8121223
Not Available
5
Joint torique
AP8144007
$0,81 Unit Price incl. VAT
6
Rondelle
AP8150020
$0,08 Unit Price incl. VAT
7
Tige manette frein
AP8121221
$17,15 Unit Price incl. VAT
8
Caoutchouc pour levier
AP8120912
$1,42 Unit Price incl. VAT
9
Bague seeger
AP8150462
$0,67 Unit Price incl. VAT
10
Joint torique
AP8120178
$0,08 Unit Price incl. VAT
11
RESSORT
AP8121126
$5,38 Unit Price incl. VAT
12
Microinterrupteur
AP8112996
$30,28 Unit Price incl. VAT
13
Fourchette
AP8101968
$5,09 Unit Price incl. VAT
14
Ecrou
AP8150026
$0,16 Unit Price incl. VAT
15
Clip fourc.b.vitesses
AP8201301
$2,24 Unit Price incl. VAT
16
Vis
AP8150137
$3,70 Unit Price incl. VAT
18
Ecrou autobloqu.
AP8152299
$0,34 Unit Price incl. VAT
19
Vis bride M6X16
AP8152278
$1,77 Unit Price incl. VAT
20
RESERVOIR HUILE
856053
$24,83 Unit Price incl. VAT
21
Vis tuyau huile
AP8113003
$3,65 Unit Price incl. VAT
22
Rondelle
AP8113004
$0,34 Unit Price incl. VAT

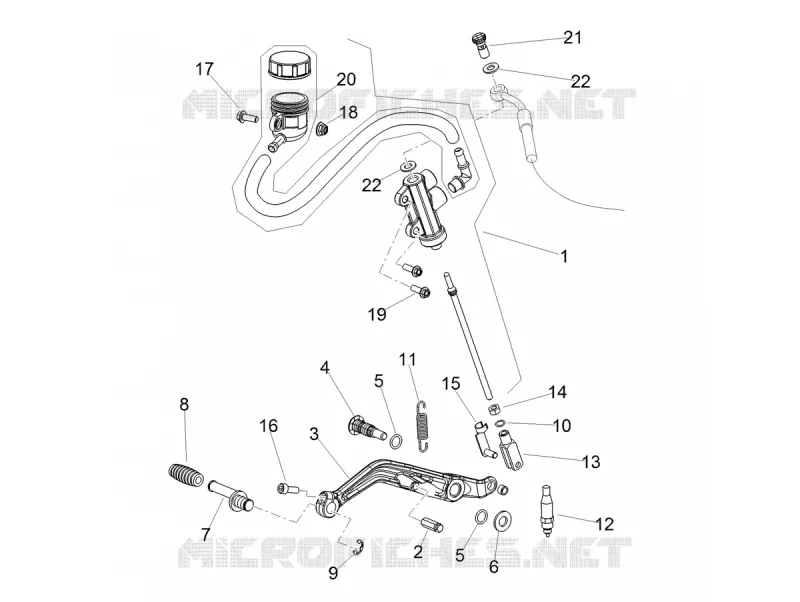

Find the detailed Rear master cylinder APRILIA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original APRILIA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.

Other Parts for Shiver 900 ABS Euro 4

Head cover

Head cover

for Shiver 900 ABS Euro 4 from 2017

Cylinder head - valves

Cylinder head - valves

for Shiver 900 ABS Euro 4 from 2017

Pad

Pad

for Shiver 900 ABS Euro 4 from 2017

Front cylinder timing system

Front cylinder timing system

for Shiver 900 ABS Euro 4 from 2017

Rear cylinder timing system

Rear cylinder timing system

for Shiver 900 ABS Euro 4 from 2017

Cylinder - Piston

Cylinder - Piston

for Shiver 900 ABS Euro 4 from 2017

Drive shaft

Drive shaft

for Shiver 900 ABS Euro 4 from 2017

Gear box / Selector / Shift cam

Gear box / Selector / Shift cam

for Shiver 900 ABS Euro 4 from 2017

Gear box - Gear assembly

Gear box - Gear assembly

for Shiver 900 ABS Euro 4 from 2017

Lubrication

Lubrication

for Shiver 900 ABS Euro 4 from 2017

Water pump

Water pump

for Shiver 900 ABS Euro 4 from 2017

Clutch cover

Clutch cover

for Shiver 900 ABS Euro 4 from 2017

Clutch

Clutch

for Shiver 900 ABS Euro 4 from 2017

Steering

Steering

for Shiver 900 ABS Euro 4 from 2017

Handlebar - Controls

Handlebar - Controls

for Shiver 900 ABS Euro 4 from 2017

Clutch control

Clutch control

for Shiver 900 ABS Euro 4 from 2017

Front lights

Front lights

for Shiver 900 ABS Euro 4 from 2017

Instruments

Instruments

for Shiver 900 ABS Euro 4 from 2017

Rear lights

Rear lights

for Shiver 900 ABS Euro 4 from 2017

Fuel tank

Fuel tank

for Shiver 900 ABS Euro 4 from 2017

Fuel vapour recover system

Fuel vapour recover system

for Shiver 900 ABS Euro 4 from 2017

Cooling system

Cooling system

for Shiver 900 ABS Euro 4 from 2017

Front electrical system

Front electrical system

for Shiver 900 ABS Euro 4 from 2017

Rear electrical system

Rear electrical system

for Shiver 900 ABS Euro 4 from 2017

Front fork Kayaba

Front fork Kayaba

for Shiver 900 ABS Euro 4 from 2017

Side fairing

Side fairing

for Shiver 900 ABS Euro 4 from 2017

Tank cover

Tank cover

for Shiver 900 ABS Euro 4 from 2017

Saddle

Saddle

for Shiver 900 ABS Euro 4 from 2017

Saddle compartment

Saddle compartment

for Shiver 900 ABS Euro 4 from 2017

Rear body

Rear body

for Shiver 900 ABS Euro 4 from 2017

Throttle body

Throttle body

for Shiver 900 ABS Euro 4 from 2017

Locks

Locks

for Shiver 900 ABS Euro 4 from 2017

Plate set / Various

Plate set / Various

for Shiver 900 ABS Euro 4 from 2017

Decal

Decal

for Shiver 900 ABS Euro 4 from 2017

Cdi magneto assy / Ignition unit

Cdi magneto assy / Ignition unit

for Shiver 900 ABS Euro 4 from 2017

Exhaust pipe

Exhaust pipe

for Shiver 900 ABS Euro 4 from 2017

Engine-Completing part-Lever

Engine-Completing part-Lever

for Shiver 900 ABS Euro 4 from 2017

Crankcases I

Crankcases I

for Shiver 900 ABS Euro 4 from 2017

Crankcases I

Crankcases I

for Shiver 900 ABS Euro 4 from 2017

Air box

Air box

for Shiver 900 ABS Euro 4 from 2017

Shock absorber

Shock absorber

for Shiver 900 ABS Euro 4 from 2017

Frame

Frame

for Shiver 900 ABS Euro 4 from 2017

Foot rests

Foot rests

for Shiver 900 ABS Euro 4 from 2017

Central stand

Central stand

for Shiver 900 ABS Euro 4 from 2017

Swing arm

Swing arm

for Shiver 900 ABS Euro 4 from 2017

Front mudguard-Pillar

Front mudguard-Pillar

for Shiver 900 ABS Euro 4 from 2017

Front wheel

Front wheel

for Shiver 900 ABS Euro 4 from 2017

Rear wheel

Rear wheel

for Shiver 900 ABS Euro 4 from 2017

Front master cilinder

Front master cilinder

for Shiver 900 ABS Euro 4 from 2017

Front brake caliper

Front brake caliper

for Shiver 900 ABS Euro 4 from 2017

Rear master cylinder

Rear master cylinder

for Shiver 900 ABS Euro 4 from 2017

Rear brake caliper

Rear brake caliper

for Shiver 900 ABS Euro 4 from 2017

ABS Brake system

ABS Brake system

for Shiver 900 ABS Euro 4 from 2017

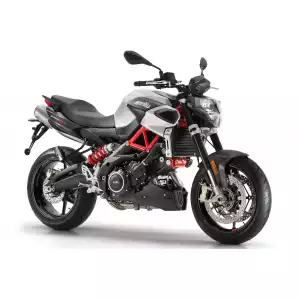

APRILIA Shiver 900 ABS Euro 4 2017
