1
Engine displacement
900
2
Model
SHIVER
3
Year
2017
4
Trim
Shiver 900 ABS Euro 4
5
Parts Catalog
Frame
6
Parts Diagram
Parts Catalog
Shock absorber
by
Foot rests
Frame
1
2
3
3
3
3
4
5
5
6
6
7
7
7
7
7
7
7
8
8
8
9
10
10
11
12
13
13
13
13
14
15
15
16
17
17
18
18
19
20
20
21
22
23
24
25
26
27
28
29
29
30
31
32
32
33
34
35
35
36
37
38
39
1
Chassis
89449300XR8
$1 366,20 Unit Price incl. VAT
2
Flanc D, noir
85153600XNB
$918,80 Unit Price incl. VAT
3
Flanc G, noir
85153700XNB
$918,80 Unit Price incl. VAT
4
SUPPORT
851541
$68,07 Unit Price incl. VAT
5
VIS TC TORX
852165
$1,78 Unit Price incl. VAT
6
Douille
853037
$4,61 Unit Price incl. VAT
7
ECROU D'AXE DE ROUE
271740
$0,67 Unit Price incl. VAT
8
PLAQUETTE
575268
$1,19 Unit Price incl. VAT
9
Tampon fin de course béquille
AP8144030
$6,30 Unit Price incl. VAT
10
PLAQUETTE
254485
$0,34 Unit Price incl. VAT
11
Vis
AP8150195
$0,67 Unit Price incl. VAT
12
Clip
AP8102375
$0,69 Unit Price incl. VAT
13
Vis
2B002216
$3,65 Unit Price incl. VAT
14
Vis
AP8150044
$3,65 Unit Price incl. VAT
15
"Douille en ""T"" *"
AP8221023
$0,93 Unit Price incl. VAT
16
Caoutchouc
AP8120030
$0,85 Unit Price incl. VAT
17
Tirant prise moteur;
851784
$7,69 Unit Price incl. VAT
18
Rondelle
AP8150101
$3,65 Unit Price incl. VAT
19
Vis bride
AP8152286
$0,25 Unit Price incl. VAT
20
ENTRETOISE
853036
$1,30 Unit Price incl. VAT
21
ENTRETOISE
853035
$4,70 Unit Price incl. VAT
22
Collier, noir
AP8120422
$3,70 Unit Price incl. VAT
23
FASCETTA IN NYLON NERA
AP8102386
$0,07 Unit Price incl. VAT
24
Collier
AP8120657
$0,34 Unit Price incl. VAT
25
Accroche-selle
2B004100
$489,22 Unit Price incl. VAT
26
SUPPORT
851686
$24,18 Unit Price incl. VAT
27
SUPPORT
851789
$15,34 Unit Price incl. VAT
28
Caoutchouc appui selle
AP8220349
$5,38 Unit Price incl. VAT
29
JOINT
852433
$1,57 Unit Price incl. VAT
30
Rondelle
AP8150179
$0,08 Unit Price incl. VAT
31
Vis
AP8152117
$0,25 Unit Price incl. VAT
32
Rondelle élastique courbe
AP8150376
$0,08 Unit Price incl. VAT
33
Vis
AP8150329
$3,65 Unit Price incl. VAT
34
Rondelle
AP8152176
$3,65 Unit Price incl. VAT
35
Rondelle
AP8150017
$3,65 Unit Price incl. VAT
36
ECROU
272176
$3,70 Unit Price incl. VAT
37
Vis taraud pour plast. Inox
AP8150413
$0,08 Unit Price incl. VAT
38
PLAQUE
856668
$2,34 Unit Price incl. VAT
39
PROTECTION
859883
$3,92 Unit Price incl. VAT

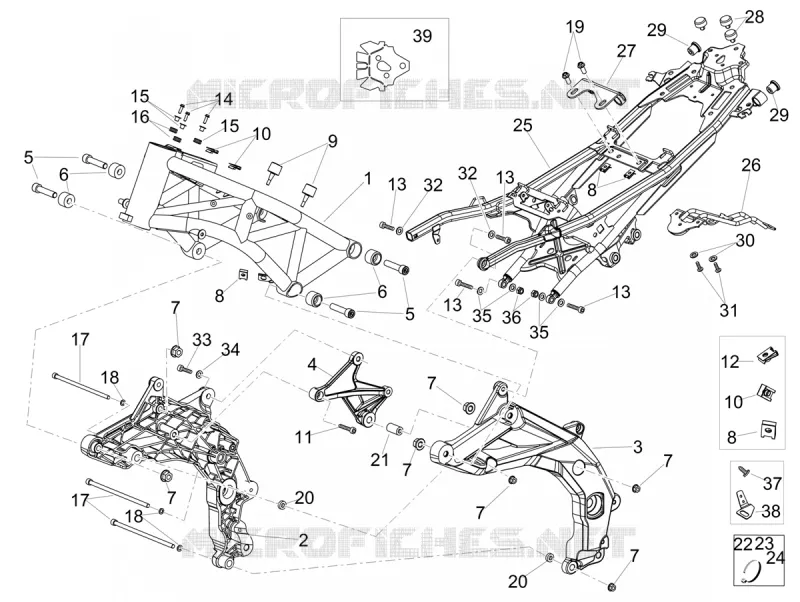

Find the detailed Frame APRILIA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original APRILIA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
