1
Engine displacement
1100
2
Model
TUONO
3
Year
2018
4
Trim
Tuono V4 1100 RF E4 ABS
5
Parts Catalog
Foot rests
6
Parts Diagram
Parts Catalog
Air box
by
Rear body I
Foot rests
6
25
24
23
23
22
21
20
19
19
18
18
17
17
17
17
16
16
15
14
14
14
13
12
12
11
11
11
11
10
9
9
9
8
7
6
6
6
5
5
4
4
3
3
2
1
1
RH front footrest bracket
2B003415
Not Available
2
RH Foot rests
897830
Not Available
3
Pin
GU30441005
$14,30 Unit Price incl. VAT
4
Pivot repose-pieds
CM228401
$5,20 Unit Price incl. VAT
5
Ressort retour repose-pieds
AP8121224
$1,35 Unit Price incl. VAT
6
Anneau d'arrêt rad.
AP8120573
$3,65 Unit Price incl. VAT
7
Pivot fixation
GU05677730
$10,00 Unit Price incl. VAT
8
Sup.pl.pilote gche
897829
$95,06 Unit Price incl. VAT
9
Vis tcc
AP8150540
$5,27 Unit Price incl. VAT
10
Vis
AP8224470
$0,34 Unit Price incl. VAT
11
Spring washer 6,4x11x0,5*
AP8150429
Not Available
12
Protect.dte
858787
$10,80 Unit Price incl. VAT
13
Protect.gche
858788
$15,91 Unit Price incl. VAT
14
Vis
AP8150537
$3,65 Unit Price incl. VAT
15
Protection rep-pieds pass.g.
894201
$10,80 Unit Price incl. VAT
16
Pivot repose-pieds
CM228402
$3,65 Unit Price incl. VAT
17
Plaque fdc r-pied;
AP8134451
$2,56 Unit Price incl. VAT
18
Bille
AP8101861
$0,10 Unit Price incl. VAT
19
Res. hélic. compr
AP8121133
$0,53 Unit Price incl. VAT
20
Tapis droit
897832
$119,94 Unit Price incl. VAT
21
Rep-pds pass.dte
897834
$100,27 Unit Price incl. VAT
22
Rep-pieds pass.g.
897835
$100,27 Unit Price incl. VAT
23
Vis
AP8150164
$3,65 Unit Price incl. VAT
24
Tapis gauche
897833
$109,04 Unit Price incl. VAT
25
LH Foot rests
897831
Not Available

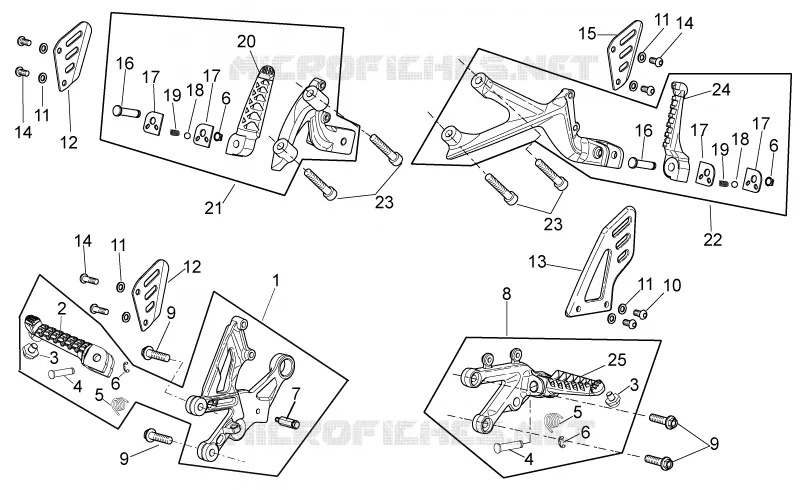

Find the detailed Foot rests APRILIA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original APRILIA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
