Engine displacement
1100
2
Model
TUONO
3
Year
2018
4
Trim
Tuono V4 1100 RF E4 ABS
5
Parts Catalog
Frame II
6
Parts Diagram
Parts Catalog
Central stand
by
Saddle
Frame II
10
9
8
7
6
5
5
5
4
3
2
1
1
Châssis
2B003589
$564,54 Unit Price incl. VAT
2
Bride support feu
858903
$5,40 Unit Price incl. VAT
3
Patte
858904
$6,41 Unit Price incl. VAT
4
Rivet fileté
AP8201755
$5,73 Unit Price incl. VAT
5
Vis
AP8150469
$3,65 Unit Price incl. VAT
6
Eponge adhésive
AP8117033
$5,38 Unit Price incl. VAT
7
Rivet fileté+moleté
AP8102544
$5,23 Unit Price incl. VAT
8
Rivet fileté;
AP8104390
$3,38 Unit Price incl. VAT
9
Cover
AP8220323
$5,38 Unit Price incl. VAT
10
Joint
AP8144707
$5,38 Unit Price incl. VAT

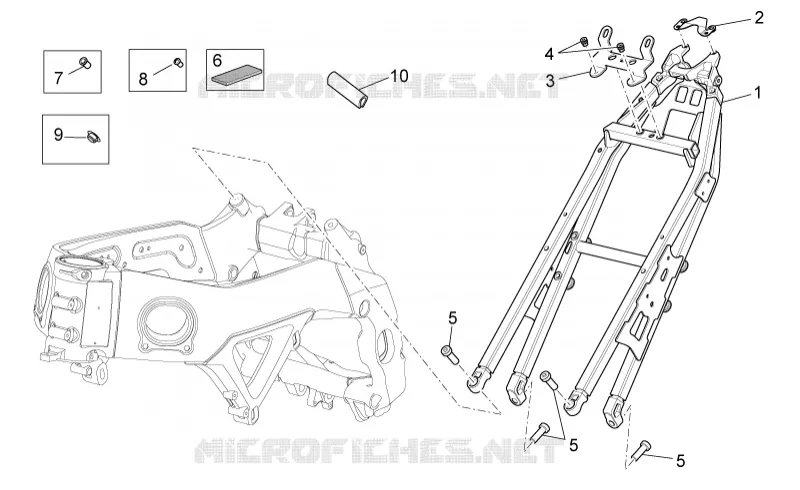

Find the detailed Frame II APRILIA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original APRILIA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
