1
Engine displacement
900
2
Model
DORSODURO
3
Year
2018
4
Trim
Dorsoduro 900 Euro 4 ABS
5
Parts Catalog
IGNITION UNIT - FLYWHEEL
6
Parts Diagram
Parts Catalog
CYLINDER - PISTON
by
ENGINE - GEAR LEVER - SPROCKET

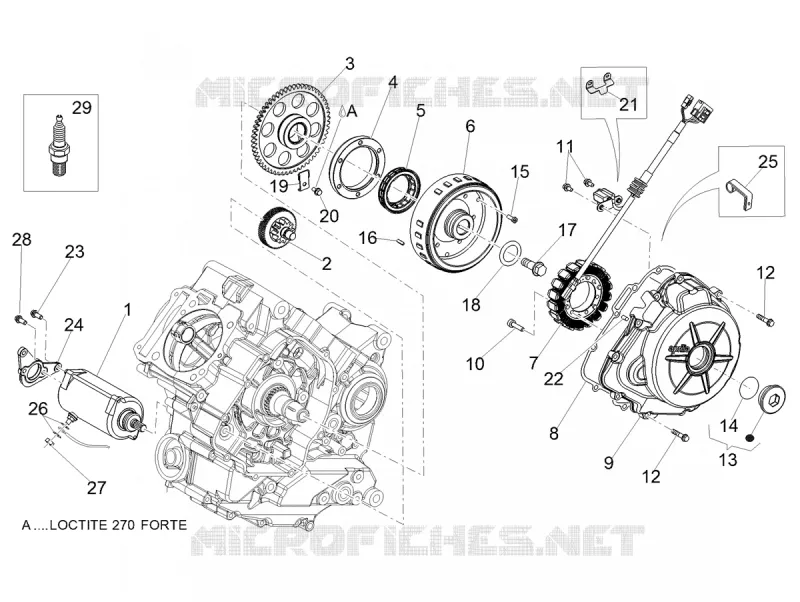

IGNITION UNIT - FLYWHEEL
1
2
3
4
5
6
7
8
9
10
11
12
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
1
Starter motor
82697R
$211,95 Unit Price incl. VAT
2
Torque limiter
876954
$73,52 Unit Price incl. VAT
3
Starter motor gear
848714
Not Available
4
Sprag clutch housing
830390
$48,15 Unit Price incl. VAT
5
Sprag clutch
830389
$215,09 Unit Price incl. VAT
6
Rotor cpl.
642387
$110,41 Unit Price incl. VAT
7
Stator cpl.
640168
$81,88 Unit Price incl. VAT
8
Flywheel housing cover gasket
B017756
$12,62 Unit Price incl. VAT
9
Flywheel side cover
1A000849
$235,32 Unit Price incl. VAT
10
Hex socket screw M6X30
1A002951
$3,65 Unit Price incl. VAT
11
TBCIC Screw M5x12
015935
$4,82 Unit Price incl. VAT
12
Screw w/ flange
874551
$0,21 Unit Price incl. VAT
13
Cover
8716754
Not Available
14
Gasket
974219
$4,89 Unit Price incl. VAT
15
Hex socket screw M6x18
B013207
$3,70 Unit Price incl. VAT
16
Transmission key
000267
$1,19 Unit Price incl. VAT
17
Screw w/ flange M14x30
B015563
$10,43 Unit Price incl. VAT
18
Flat washer 14.1x30x3
825725
$1,77 Unit Price incl. VAT
19
Plate
848845
$5,45 Unit Price incl. VAT
20
Screw w/ flange
878872
$0,34 Unit Price incl. VAT
21
Plate
848647
$0,63 Unit Price incl. VAT
22
Locating dowel Ø7,5x12
277916
$0,34 Unit Price incl. VAT
23
Screw w/ flange M6x16
874555
$0,21 Unit Price incl. VAT
24
Bracket
1A008503
$25,26 Unit Price incl. VAT
25
Hose clamp
B013745
$3,65 Unit Price incl. VAT
26
Curved spring washer *
AP8150182
$0,08 Unit Price incl. VAT
27
Self locking nut M6
195482
$0,19 Unit Price incl. VAT
28
Screw w/ flange M6x14
874554
$0,25 Unit Price incl. VAT
29
Bougie d'allumage MR8BI-8 NGK
1A010638
$58,17 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
