1
Engine displacement
900
2
Model
DORSODURO
3
Year
2018
4
Trim
Dorsoduro 900 Euro 4 ABS
5
Parts Catalog
REAR ELECTRICAL SYSTEM
6
Parts Diagram
Parts Catalog
SIDE FAIRINGS
by
SEAT

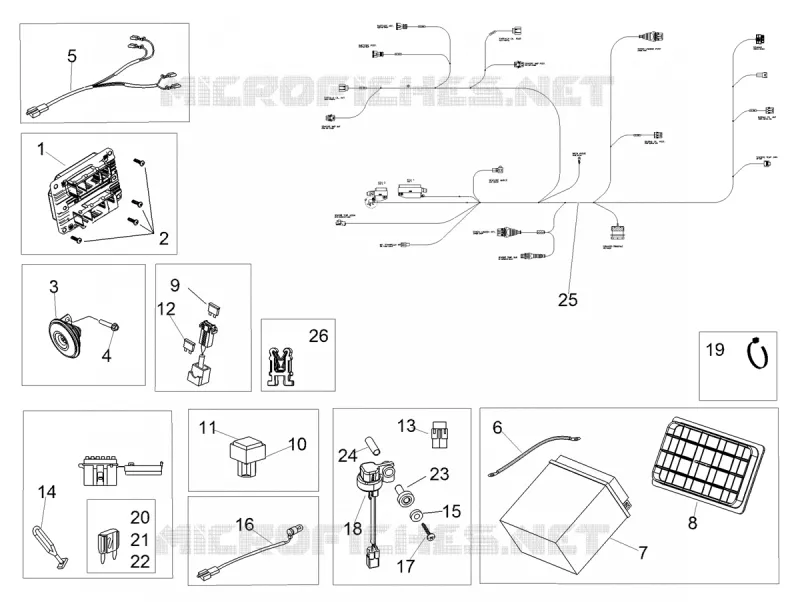

REAR ELECTRICAL SYSTEM
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
1
Centrale injection électronique
CM281706
$1 661,63 Unit Price incl. VAT
2
Self-tap screw 5x14
AP8150509
$0,51 Unit Price incl. VAT
3
Horn
854830
$20,00 Unit Price incl. VAT
4
Screw w/ flange M6x25
AP8152280
$0,25 Unit Price incl. VAT
5
Taillight wiring harn.
856843
$20,59 Unit Price incl. VAT
6
Earth cable
859967
$6,83 Unit Price incl. VAT
7
Battery PTX12-BS 12V-10Ah (Piaggio)
1R000318
$121,77 Unit Price incl. VAT
7
Battery (Yuasa) 12V-10Ah
583158
$278,17 Unit Price incl. VAT
8
Battery adapter
654139
$2,77 Unit Price incl. VAT
9
Fuse 20A
CM225720
$7,34 Unit Price incl. VAT
10
Relay rubber
AP8220546
$4,62 Unit Price incl. VAT
11
Injection relay 12V-40W
895481
$9,69 Unit Price incl. VAT
12
Fusible 5A
CM225705
$0,92 Unit Price incl. VAT
13
connector for fall sensor
887193
$3,30 Unit Price incl. VAT
14
Elastic
AP8120177
$5,38 Unit Price incl. VAT
15
Washer 5,5x15x1,6
AP8150248
$0,16 Unit Price incl. VAT
16
Plate light wiring
860026
$4,87 Unit Price incl. VAT
17
Hex socket screw
AP8225369
$3,65 Unit Price incl. VAT
18
Fall sensor
2B004498
Not Available
19
Black hose D12*
AP8102151
Not Available
20
Fuse 10A
CM225610
$0,92 Unit Price incl. VAT
21
Fuse 15A
CM225615
$5,62 Unit Price incl. VAT
22
Fuse 7,5A
CM225607
$2,60 Unit Price incl. VAT
23
Rubber w/ insert
AP8120531
$6,30 Unit Price incl. VAT
24
Bush
2B004490
$3,65 Unit Price incl. VAT
25
Engine wiring
2D000360
$318,16 Unit Price incl. VAT
26
Plugs spring
1D000680
$1,51 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
