1
Engine displacement
900
2
Model
DORSODURO
3
Year
2018
4
Trim
Dorsoduro 900 Euro 4 ABS
5
Parts Catalog
ENGINE - GEAR LEVER - SPROCKET
6
Parts Diagram
Parts Catalog
IGNITION UNIT - FLYWHEEL
by
CRANKCASES I

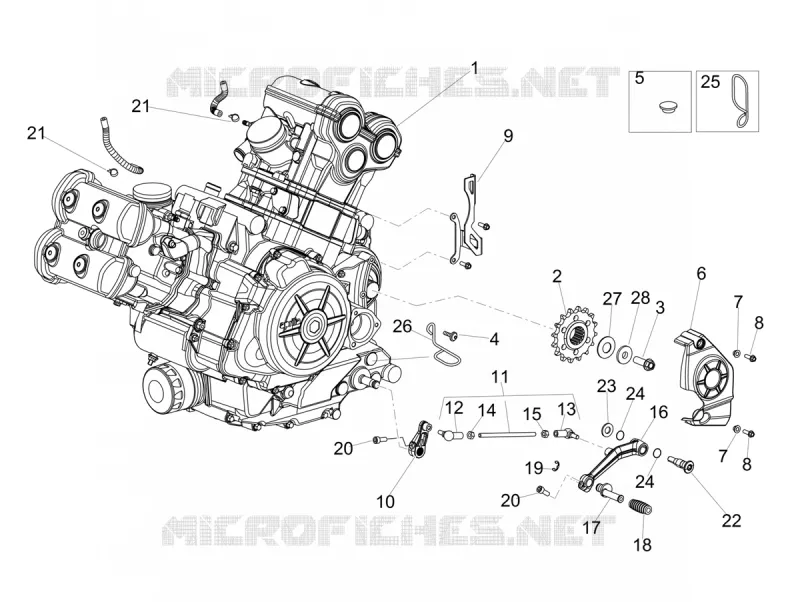

ENGINE - GEAR LEVER - SPROCKET
1
2
3
4
5
6
7
7
8
8
9
10
12
11
13
14
15
16
17
18
19
20
20
21
21
22
23
24
24
25
26
27
28
1
Moteur 900
CM1610025
Not Available
2
Pignon Z=15
2B004212
$39,15 Unit Price incl. VAT
3
Screw w/ flange M10x25
B043047
$3,38 Unit Price incl. VAT
4
Hex socket screw M8x12
AP8152055
$3,65 Unit Price incl. VAT
5
Cover
AP8102600
$0,16 Unit Price incl. VAT
6
Sprocket cover
856069
$2,87 Unit Price incl. VAT
7
Screw w/ flange M6x12
AP8152277
$0,25 Unit Price incl. VAT
8
T bush
AP8121811
$3,38 Unit Price incl. VAT
9
Plate
856079
$3,89 Unit Price incl. VAT
10
Gear lever
852480
$23,84 Unit Price incl. VAT
11
Tige renvoi b. vit. cpl.
2B004572
$57,05 Unit Price incl. VAT
12
RH ball joint M6
AP8210007
$5,13 Unit Price incl. VAT
13
Left ball joint M6
AP8110053
$5,13 Unit Price incl. VAT
14
Nut
AP8152138
$0,68 Unit Price incl. VAT
15
Nut M6
AP8150026
$0,16 Unit Price incl. VAT
16
Gear lever
860402
$48,54 Unit Price incl. VAT
17
Brake lever pin
AP8121221
$17,15 Unit Price incl. VAT
18
Lever rubber
AP8120912
$1,42 Unit Price incl. VAT
19
Circlip d9
AP8150462
$0,67 Unit Price incl. VAT
20
Hex socket screw M6x16
AP8150137
$3,70 Unit Price incl. VAT
21
Hose clamp D 11,9
AP8201358
$0,34 Unit Price incl. VAT
22
Lever pin
884033
$11,17 Unit Price incl. VAT
23
Washer 10,5x21x2*
AP8150020
$0,08 Unit Price incl. VAT
24
O-ring 11,11x1,78
AP8144007
$0,81 Unit Price incl. VAT
25
Cable-guide
AP8121889
$5,38 Unit Price incl. VAT
26
Cable-guide
AP8221114
$5,38 Unit Price incl. VAT
27
Belleville spring
2B002193
$3,38 Unit Price incl. VAT
28
T bushing
2B002191
$10,04 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
