1
Engine displacement
900
2
Model
DORSODURO
3
Year
2018
4
Trim
Dorsoduro 900 Euro 4 ABS
5
Parts Catalog

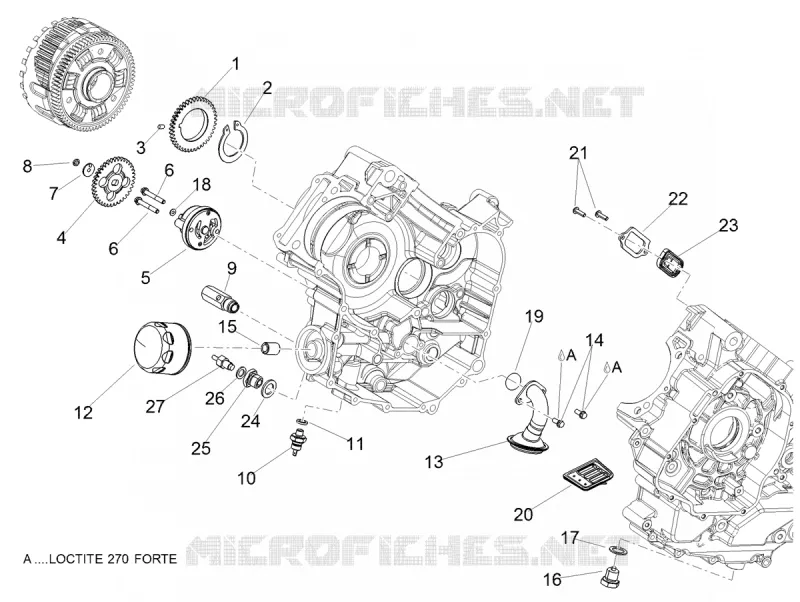

OIL PUMP - OIL FILTER
6
Parts Diagram
Parts Catalog
GEARBOX
by
REAR CYLINDER TIMING SYSTEM
OIL PUMP - OIL FILTER
1
2
3
4
5
6
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
1
Oil pump gear
974517
$16,94 Unit Price incl. VAT
2
Snap ring
006450
$2,76 Unit Price incl. VAT
3
Roller
974157
$0,53 Unit Price incl. VAT
4
Oil pump gear
873866
$14,40 Unit Price incl. VAT
5
Oil pump assy.
873863
$34,74 Unit Price incl. VAT
6
Screw w/ flange
878871
$0,24 Unit Price incl. VAT
7
Safety washer
873974
$0,96 Unit Price incl. VAT
8
Low nut
873906
$2,16 Unit Price incl. VAT
9
Oil pressure valve
83016R
$34,73 Unit Price incl. VAT
10
Minimum oil pressure sensor
1D001138
Not Available
11
Rondelle 10,5X17X1,5
1A011500
$0,59 Unit Price incl. VAT
12
Oil filter
82960R
$14,99 Unit Price incl. VAT
13
Intake oil filter
873612
$27,03 Unit Price incl. VAT
14
Hex socket screw M6x16
1A002954
$0,21 Unit Price incl. VAT
15
Oil filter union
829122
$4,13 Unit Price incl. VAT
16
Oil unload plug
875358
$4,78 Unit Price incl. VAT
17
Copper gasket
287174
$1,34 Unit Price incl. VAT
18
Shim washer
974290
$0,29 Unit Price incl. VAT
19
O-ring
969323
$0,24 Unit Price incl. VAT
20
Reed valve support
1A005240
$88,83 Unit Price incl. VAT
21
Torx convex big end screw M5x16
1A003051
$1,01 Unit Price incl. VAT
22
plate
1A006650
$3,68 Unit Price incl. VAT
23
Reeds bracket
825051
Not Available
24
Gasket
GU01154230
$4,82 Unit Price incl. VAT
25
joint.p.
1A009642
$35,51 Unit Price incl. VAT
26
Rondelle 10,5X17X1,5
1A011500
$0,59 Unit Price incl. VAT
27
Heat temperature sensor
887421
$47,25 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
