1
Engine displacement
1100
2
Model
TUONO
3
Year
2019
4
Trim
Tuono V4 Factory 1100 Euro 4 Superpole ABS
5
Parts Catalog

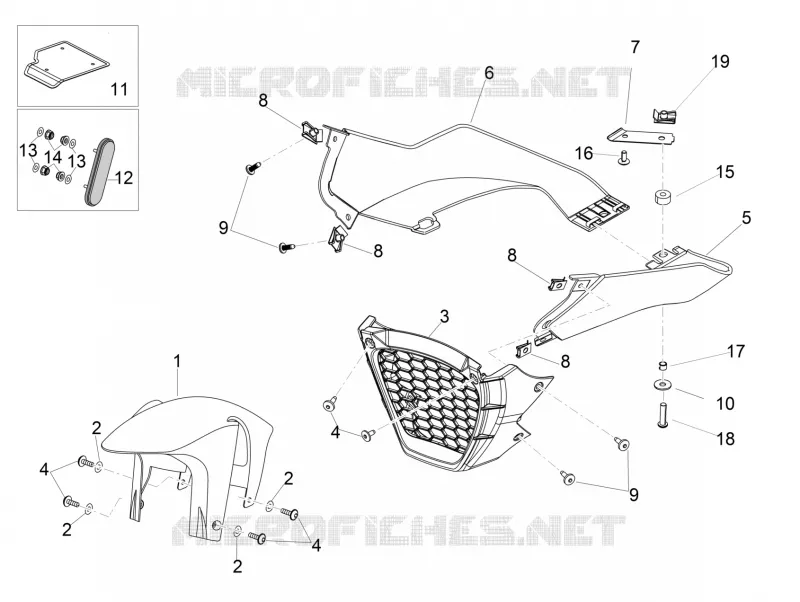

Front body III
6
Parts Diagram
Parts Catalog
THROTTLE BODY
by
REAR CYLINDER TIMING SYSTEM
Front body III
1
2
2
2
2
3
4
4
4
5
6
7
8
8
8
8
9
9
10
11
12
13
13
14
15
16
17
18
19
1
Photoengraved front mudguard
2B003404
$110,21 Unit Price incl. VAT
2
Washer 8,5x15x0,8
AP8150376
$0,08 Unit Price incl. VAT
3
Pillar
B043248
$47,95 Unit Price incl. VAT
4
Hex socket screw M5x9
AP8150500
$1,53 Unit Price incl. VAT
5
Left pillar
B043247
$31,97 Unit Price incl. VAT
6
Right pillar
B043246
$31,97 Unit Price incl. VAT
7
Lower bracket
2B002563
$8,91 Unit Price incl. VAT
8
Clip M5
AP8102375
$0,69 Unit Price incl. VAT
9
Hex socket screw M5x9
AP8150500
$1,53 Unit Price incl. VAT
10
Washer 6,6x18x1,6
841821
$0,37 Unit Price incl. VAT
11
Heat protection
B043880
$24,90 Unit Price incl. VAT
12
Reflector, amber
AP8124719
$8,16 Unit Price incl. VAT
13
Washer 4,3X9X0,8
AP8150158
$3,65 Unit Price incl. VAT
14
Nut M4
AP8150204
$0,51 Unit Price incl. VAT
15
Spacer
AP8125848
$3,65 Unit Price incl. VAT
16
Hex socket screw Black M5x12
896174
$0,34 Unit Price incl. VAT
17
Spacer
AP8120253
$3,65 Unit Price incl. VAT
18
Vite TBEI M6x25
AP8152117
$0,25 Unit Price incl. VAT
19
Spring plate M6
254485
$0,34 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
