1
Engine displacement
1100
2
Model
TUONO
3
Year
2019
4
Trim
Tuono V4 Factory 1100 Euro 4 Superpole ABS
5
Parts Catalog
Engine
6
Parts Diagram
Parts Catalog
Electrical system II
by
STEERING

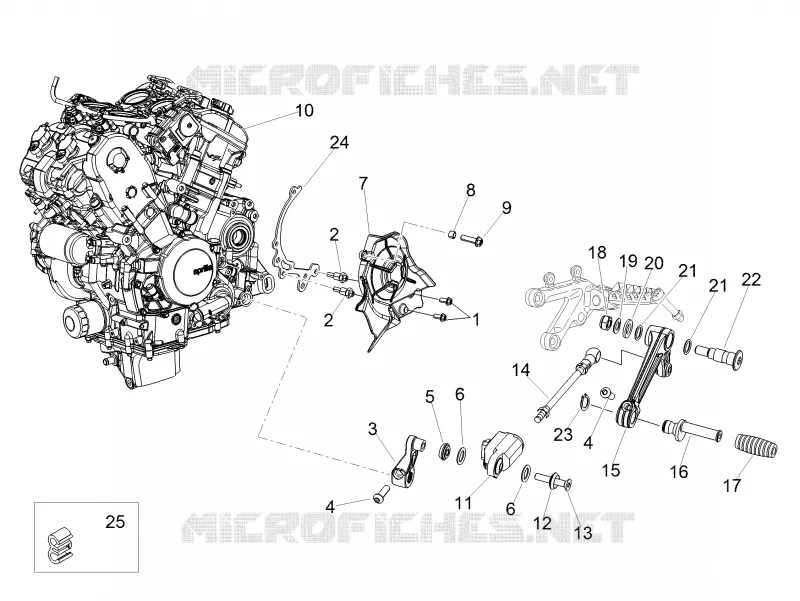

Engine
1
2
2
3
4
4
5
6
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
21
22
23
24
25
1
Screw w/ flange M6x12
AP8152277
$0,25 Unit Price incl. VAT
2
Spacer
2B001932
$3,65 Unit Price incl. VAT
3
Gear lever
852480
$23,84 Unit Price incl. VAT
4
Hex socket screw M6x20
AP8224470
$0,34 Unit Price incl. VAT
5
Bush
2B002562
$3,70 Unit Price incl. VAT
6
O-ring 115
AP8220177
$0,15 Unit Price incl. VAT
7
Sprocket cover
2B003460
Not Available
8
Spacer
AP8120253
$3,65 Unit Price incl. VAT
9
Screw w/ flange M6x20
AP8152279
$0,51 Unit Price incl. VAT
10
Engine cpl.
CM2668035
Not Available
11
Quick shift device
2B002890
$320,61 Unit Price incl. VAT
12
Bush
898134
$8,12 Unit Price incl. VAT
13
Screw M6x35
898463
$3,70 Unit Price incl. VAT
14
Gear control tie rod
2B003382
$57,79 Unit Price incl. VAT
15
Gear lever
897360
$143,80 Unit Price incl. VAT
16
Brake lever pin
AP8121221
$17,15 Unit Price incl. VAT
17
Lever rubber
AP8120912
$1,42 Unit Price incl. VAT
18
Low nut M8
AP8150431
$0,34 Unit Price incl. VAT
19
Washer 8,5x15x0,8
AP8150376
$0,08 Unit Price incl. VAT
20
Washer 10,5x21x2*
AP8150020
$0,08 Unit Price incl. VAT
21
O-ring 11,11x1,78
AP8144007
$0,81 Unit Price incl. VAT
22
Rear brake lever pin
AP8121223
Not Available
23
Circlip d9
AP8150462
$0,67 Unit Price incl. VAT
24
Chain guide
858923
$5,06 Unit Price incl. VAT
25
Staple
2B000276
$3,70 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
