1
Engine displacement
1100
2
Model
TUONO
3
Year
2019
4
Trim
Tuono V4 Factory 1100 Euro 4 Superpole ABS
5
Parts Catalog
OIL PUMP - OIL FILTER
6
Parts Diagram
Parts Catalog
SECONDARY AIR
by
Front brake caliper

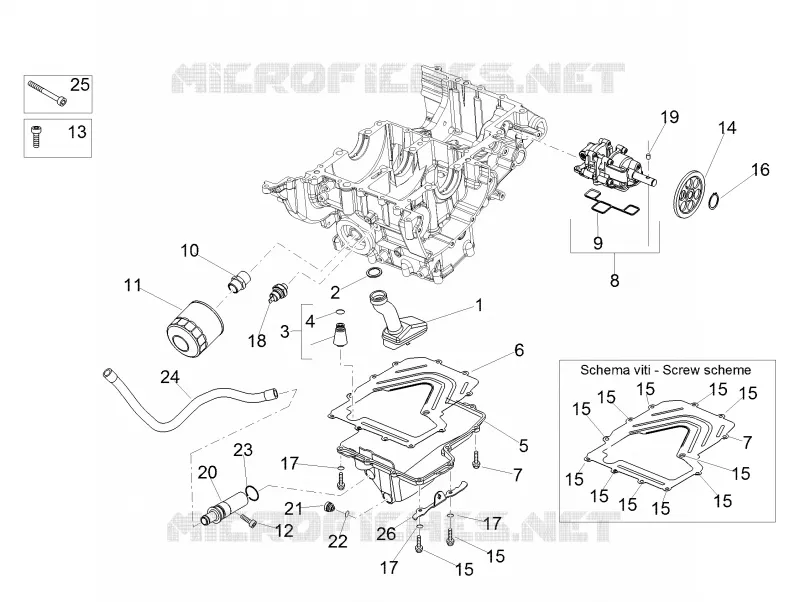

OIL PUMP - OIL FILTER
1
2
3
4
5
6
7
7
8
9
10
11
12
13
14
15
15
15
15
15
15
15
15
15
15
15
15
15
16
17
17
17
18
19
20
21
22
23
24
25
26
1
Oil strainer
857502
$46,17 Unit Price incl. VAT
2
Or packing 24x2,5 - 80 FKM
B046072
$7,23 Unit Price incl. VAT
3
Oil valve cpl.
857540
Not Available
4
O-ring
857176
$4,89 Unit Price incl. VAT
5
Motor oil cup
8997555
Not Available
6
Gasket new type
857497
$14,88 Unit Price incl. VAT
7
Hex socket screw M6x25
840893
$0,41 Unit Price incl. VAT
8
Oil pump
2A000539
$355,39 Unit Price incl. VAT
9
O-ring
857189
$4,54 Unit Price incl. VAT
10
Oil filter union
857168
$4,46 Unit Price incl. VAT
11
Oil filter
857187
$9,19 Unit Price incl. VAT
12
Hex socket screw M6x20
AP8150044
$3,65 Unit Price incl. VAT
13
Hex socket screw M6x16
709099
$0,16 Unit Price incl. VAT
14
Pump gear
85273R
$147,40 Unit Price incl. VAT
15
Screw w/ flange M6x30
289731
Not Available
16
Circlip
006412
$0,09 Unit Price incl. VAT
17
Spring washer 6,4x11x0,5*
AP8150429
Not Available
18
Minimum oil pressure sensor
1D001138
Not Available
19
Roller 5X19,8
857192
$1,71 Unit Price incl. VAT
20
Oil hose union
857439
$24,73 Unit Price incl. VAT
21
Cover
857184
$8,03 Unit Price incl. VAT
22
Gasket OR
857147
$0,83 Unit Price incl. VAT
23
O-ring 121
AP8144012
$3,65 Unit Price incl. VAT
24
Oil pipe 12x19
AP8106389
Not Available
25
Hex socket screw
277330
$0,31 Unit Price incl. VAT
26
Fixing bracket
2B003992
$31,21 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
