1
Engine displacement
150
2
Model
MOJITO
3
Year
2004
4
Trim
Mojito
5
Parts Catalog
Front wheel - CUSTOM
6
Parts Diagram
Parts Catalog
Carburettor - Components
by
Dashboard

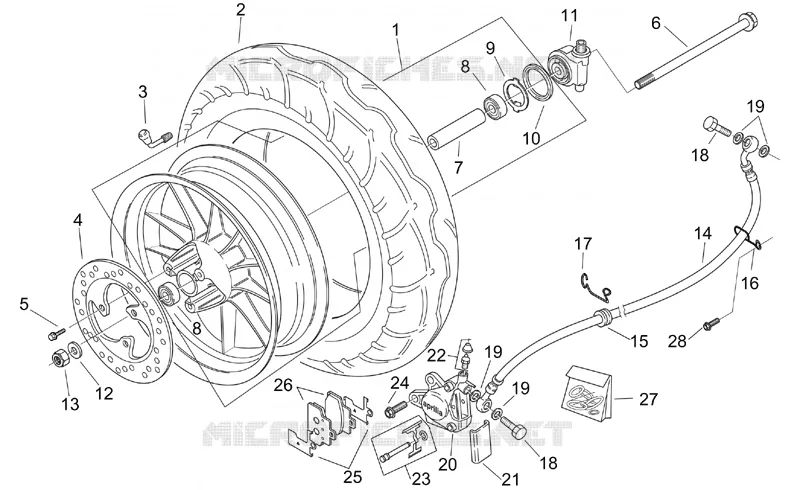

Front wheel - CUSTOM
1
2
3
4
5
6
7
8
8
9
10
11
12
13
14
15
16
17
18
18
19
19
19
20
21
22
23
24
25
26
27
28
1
Front wheel
AP8208601
$193,51 Unit Price incl. VAT
2
Tyre
0000000
Not Available
3
Tubeless tyre valve
AP8201679
$5,38 Unit Price incl. VAT
4
Brake disc D190
AP8213231
$20,52 Unit Price incl. VAT
5
Hex socket screw M8x25
AP8225358
Not Available
6
Front wheel spindle
AP8225356
Not Available
7
Front wheel spacer
AP8225357
$29,76 Unit Price incl. VAT
8
Bearing
AP8225123
$21,37 Unit Price incl. VAT
9
Drive key
AP8120865
$5,38 Unit Price incl. VAT
10
Gasket ring D40x50x4
AP8125743
$15,31 Unit Price incl. VAT
11
Odometer gear
AP8202141
Not Available
12
Washer 12,2x22x2
AP8152018
$3,65 Unit Price incl. VAT
13
Low self-locking nut M12x1,25
AP8150373
$3,65 Unit Price incl. VAT
14
Front brake hose
AP8213426
Not Available
15
Rubber spacer
AP8120030
$0,85 Unit Price incl. VAT
16
Cable-guide
AP8221172
$5,38 Unit Price incl. VAT
17
Cable-guide
AP8121889
$5,38 Unit Price incl. VAT
18
Oil pipe screw
AP8113003
$3,65 Unit Price incl. VAT
19
Washer 10x14x1,6*
AP8113004
$0,34 Unit Price incl. VAT
20
Front brake caliper
AP8113858
Not Available
21
Brake caliper cover
AP8213224
$5,38 Unit Price incl. VAT
22
Bleeder+cap
AP8113321
$16,91 Unit Price incl. VAT
23
Pin+Brake spring
AP8213461
$9,18 Unit Price incl. VAT
24
Screw w/ flange M8x25
AP8152287
$0,34 Unit Price incl. VAT
25
F.antiwhistle plate-pair
AP8113677
$8,91 Unit Price incl. VAT
26
Pads pair
AP8213460
$39,15 Unit Price incl. VAT
27
Brake caliper rev. kit
AP8213457
Not Available
28
Hex socket screw M4x10
AP8152043
$0,15 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
