1
Engine displacement
150
2
Model
MOJITO
3
Year
2004
4
Trim
Mojito
5
Parts Catalog
Air box
6
Parts Diagram
Parts Catalog
Lights - RETRO'
by
Helmet compartment

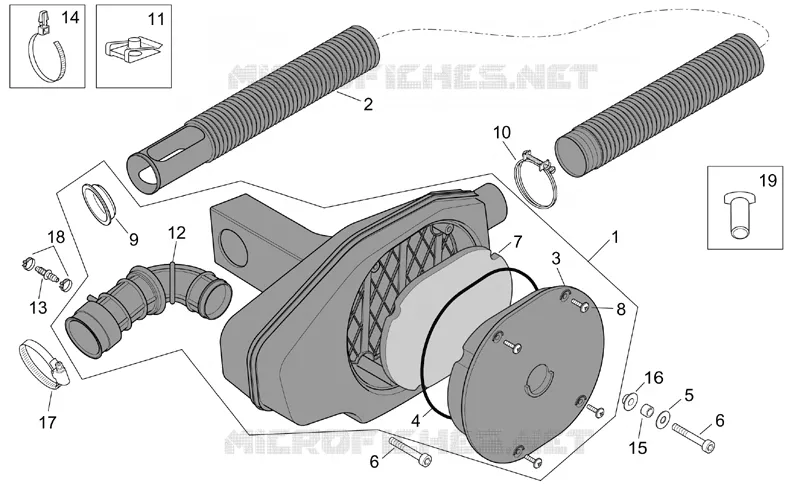

Air box
1
2
3
4
5
6
6
7
8
9
10
11
12
13
14
15
16
17
18
19
1
Air box cpl.
AP8168949
Not Available
1
Air box cpl.
AP8149031
Not Available
2
Intake hose
AP8220576
Not Available
2
Intake hose
AP8144663
Not Available
3
Filter cover
AP8249785
Not Available
4
Air filter housing seal
AP8206934
Not Available
5
Washer 6,6x18x1,6*
AP8150015
$0,16 Unit Price incl. VAT
6
Hex socket screw M6x45
AP8150403
$0,68 Unit Price incl. VAT
7
Air filter
AP8202230
Not Available
8
Phillips screw, SWP M5x20
AP8152329
$0,69 Unit Price incl. VAT
9
Plug, grey
AP8220530
Not Available
10
Hose clamp
AP8104165
Not Available
11
Clip M6
AP8102376
Not Available
12
Carburettor-air box hose
AP8144637
$19,68 Unit Price incl. VAT
12
Carburettor-air box hose
AP8220574
Not Available
13
2-way union
AP8101944
$0,76 Unit Price incl. VAT
14
Hose collar
AP8104664
Not Available
15
Spacer bush *
AP8221043
$3,65 Unit Price incl. VAT
16
T bush
AP8121728
$6,08 Unit Price incl. VAT
17
Hose clamp 40-60 h9
AP8121639
Not Available
18
Hose clamp D9,1*
AP8102377
$3,65 Unit Price incl. VAT
19
Breather pipe
AP8144646
Not Available
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
