1
Engine displacement
150
2
Model
MOJITO
3
Year
2004
4
Trim
Mojito
5
Parts Catalog
Helmet compartment
6
Parts Diagram
Parts Catalog
Air box
by
Starter motor - Ignition unit
Helmet compartment
1
2
3
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
21
22
23
1

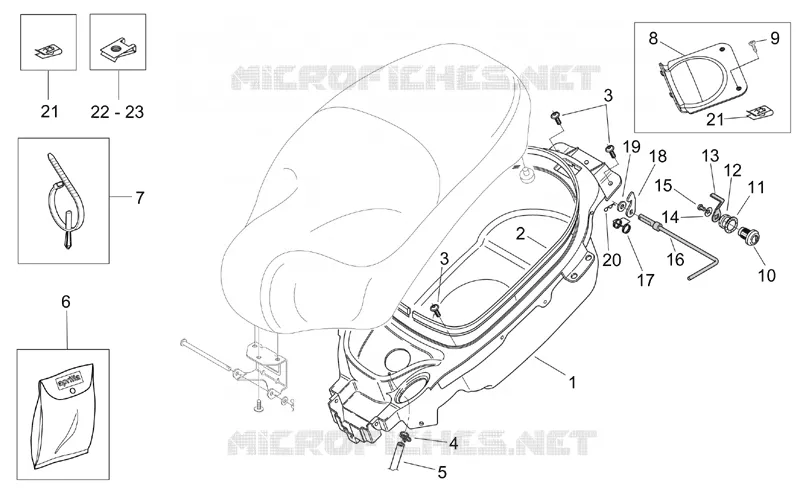

Helmet compartment
AP8168950
Not Available
1
Helmet compartment
AP8249787
Not Available
2
Top box weatherseal
AP8220313
Not Available
3
Screw w/ flange M6x16
AP8152246
$0,27 Unit Price incl. VAT
4
Hose clamp D10,1
AP8101595
$0,32 Unit Price incl. VAT
5
Fuel pipe 5,5x10
AP8120952
Not Available
6
Toolkit
AP8104731
Not Available
7
Hose clamp
AP8201539
$3,65 Unit Price incl. VAT
8
Cover
AP8249791
$8,16 Unit Price incl. VAT
9
Screw
AP8150246
$3,65 Unit Price incl. VAT
10
Top box lock
AP8202169
$26,65 Unit Price incl. VAT
11
Nickel plated lock washer *
AP8201305
Not Available
12
Low nut M19x1*
AP8152194
$1,10 Unit Price incl. VAT
13
Saddle lockup lever
AP8202295
$5,38 Unit Price incl. VAT
14
Washer
AP8201748
$0,14 Unit Price incl. VAT
15
Screw M4x6
AP8201749
$0,16 Unit Price incl. VAT
16
Saddle lockup gear
AP8221336
$5,38 Unit Price incl. VAT
17
Saddle lockup spring
AP8221295
$12,45 Unit Price incl. VAT
18
Saddle lockup hook
AP8221293
$5,38 Unit Price incl. VAT
19
Washer 8,4x16x1,6
AP8150017
$3,65 Unit Price incl. VAT
20
Split pin
AP8201643
$5,38 Unit Price incl. VAT
21
Screw clip D4,2
AP8102782
Not Available
22
Clip M4
AP8102381
$1,09 Unit Price incl. VAT
23
Clip M5
AP8102375
$0,69 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
