1
Engine displacement
125
2
Model
MOJITO
3
Year
2001
4
Trim
Mojito
5
Parts Catalog
Front body - Front fairing
6
Parts Diagram
Parts Catalog
Headlight support - RETRO'
by
Front body - Shield
Front body - Front fairing
1
1
2
3
4
4
5
5
6
6
7
7
8
9
10
1
Front fairing, cyan
AP8258109
Not Available
1
Front fairing, c.red
AP8249388
Not Available
1
Front fairing, orange
AP8249031
Not Available
1
Front fairing, volcano black
AP8249073
Not Available
1
Front fairing, a.green
AP8139888
Not Available
1
Front fairing, chalk white
AP8248690
Not Available
1
Front fairing, opaque black
AP8249212
Not Available
1
Front fairing, Ap.black
AP8249822
Not Available
1
Front fairing, reef blue
AP8249052
Not Available
2
Collier chromé AV;
AP8248184
$50,73 Unit Price incl. VAT
3
Rear collar, chr.
AP8248185
Not Available
4
Vis bride
AP8152298
$0,21 Unit Price incl. VAT
5
Vis
AP8152043
$0,15 Unit Price incl. VAT
6
Rondelle
AP8150158
$3,65 Unit Price incl. VAT
7
Vis
AP8152351
$0,17 Unit Price incl. VAT
8
Clip
AP8102375
$0,69 Unit Price incl. VAT
9
Clip
AP8102381
$1,09 Unit Price incl. VAT
10
Cache chromé;
AP8248691
$15,98 Unit Price incl. VAT

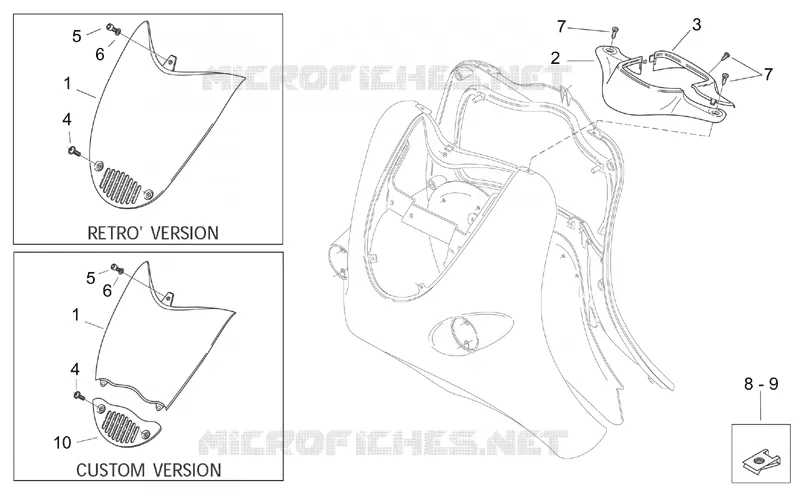

Find the detailed Front body - Front fairing APRILIA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original APRILIA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
