1
Engine displacement
125
2
Model
MOJITO
3
Year
2001
4
Trim
Mojito
5
Parts Catalog

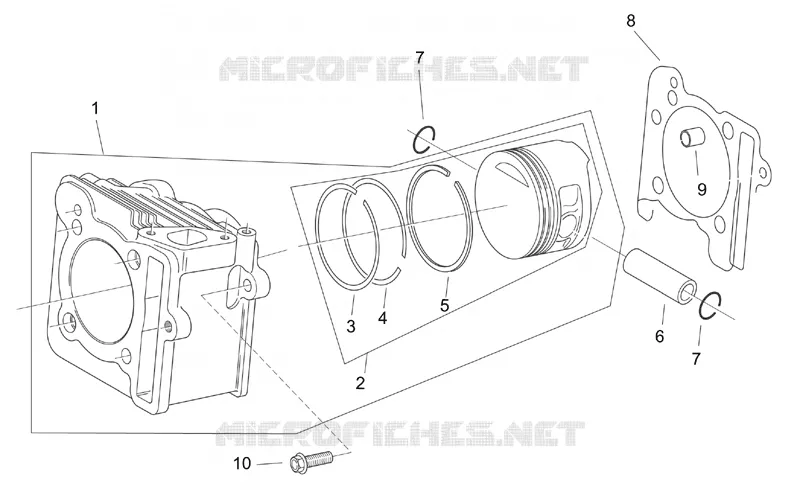

Cylinder - Piston
6
Parts Diagram
Parts Catalog
Drive shaft
by
Cylinder head
Cylinder - Piston
1
2
3
4
5
6
7
7
8
9
10
1
Cylinder with piston
AP8550362
Not Available
2
Piston assy d.57 1°selez.M
AP8550457
Not Available
2
Piston assy d.57,2 1° magg.
AP8550461
Not Available
2
Piston assy d.57 2°selez.N
AP8550458
Not Available
2
Piston assy d.57,4 2° magg.
AP8550462
Not Available
2
Piston assy d.57,6 3° magg.
AP8550463
Not Available
2
Piston assy d.57 4°selez.P
AP8550460
Not Available
2
Piston assy d.57 3°selez.O
AP8550459
Not Available
3
Ring d.57,6x1
AP8550498
Not Available
3
Ring d.57,2x1
AP8550496
Not Available
3
Ring d.57,4x1
AP8550497
Not Available
3
Ring d.57x1
AP8550499
Not Available
4
Oil scraper ring d.57x1
AP8550506
Not Available
4
Oil scraper ring d.57,6x1
AP8550504
Not Available
4
Oil scraper ring d.57,2x1
AP8550500
Not Available
4
Oil scraper ring d.57,4x1
AP8550502
Not Available
5
Oil scraper ring d.57x2,5
AP8550507
Not Available
5
Oil scraper ring d57,2x2,5
AP8550501
Not Available
5
Oil scraper ring d57,6x2,5
AP8550505
Not Available
5
Oil scraper ring d57,4x2,5
AP8550503
Not Available
6
Piston pin
AP8550517
Not Available
7
Snap ring
AP8550327
Not Available
8
Cylinder base gasket 0,6
AP8550422
Not Available
8
Cylinder base gasket 0,7
AP8550423
Not Available
8
Cylinder base gasket 0,4
AP8550421
Not Available
9
Locating dowel
AP8550416
Not Available
10
Hex socket screw M6x20
AP8550553
Not Available

Find the detailed Cylinder - Piston APRILIA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original APRILIA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
