1
Engine displacement
125
2
Model
MOJITO
3
Year
2001
4
Trim
Mojito
5
Parts Catalog
Oil pump
6
Parts Diagram
Parts Catalog
Oil filter - Chain tensioner
by
Variator assembly
Oil pump
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
20
21
22
23
24
25
26
1
Motor oil cup
AP8550377
Not Available
2
Oil unload plug
AP8550527
Not Available
3
O-ring
AP8550337
Not Available
4
Oil load plug
AP8550525
Not Available
5
O-ring
AP8550332
Not Available
6
Gasket
AP8550417
Not Available
7
Screw w/ flange M6x25
AP8550173
Not Available
8
screw
AP8550546
Not Available
9
Washer
AP8550477
Not Available
10
Timing system cover cpl.
AP8550372
Not Available
11
O-ring
AP8550333
Not Available
12
Oil seal
AP8550446
Not Available
13
Oil pump chain drift
AP8550522
Not Available
14
Oil pump chain
AP8550358
Not Available
15
Oil pump control pinion
AP8550452
Not Available
16
Oil seal washer
AP8550486
Not Available
17
Timing system chain pinion cpl
AP8550451
Not Available
18
Carter-oil pump gasket
AP8550425
Not Available
19
Oil pump assy.
AP8550464
Not Available
20
Washer 5,3x10x0,5
AP8550154
Not Available
21
screw
AP8550547
Not Available
22
Oil pump gear
AP8550380
Not Available
23
Belleville spring
AP8550439
Not Available
24
Screw w/ flange
AP8550556
Not Available
25
Oil bulhead
AP8550447
Not Available
26
Hex socket screw
AP8550155
Not Available

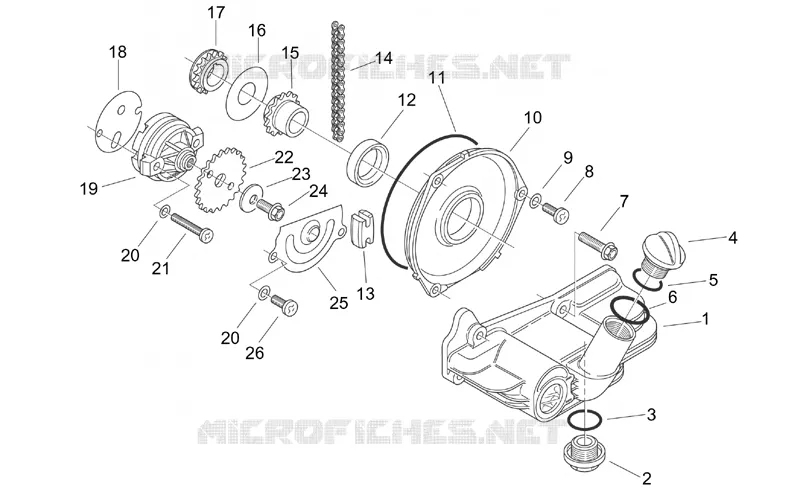

Find the detailed Oil pump APRILIA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original APRILIA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
