1
Engine displacement
900
2
Model
SHIVER
3
Year
2020
4
Trim
Shiver 900 Euro 4 ABS NAVI
5
Parts Catalog

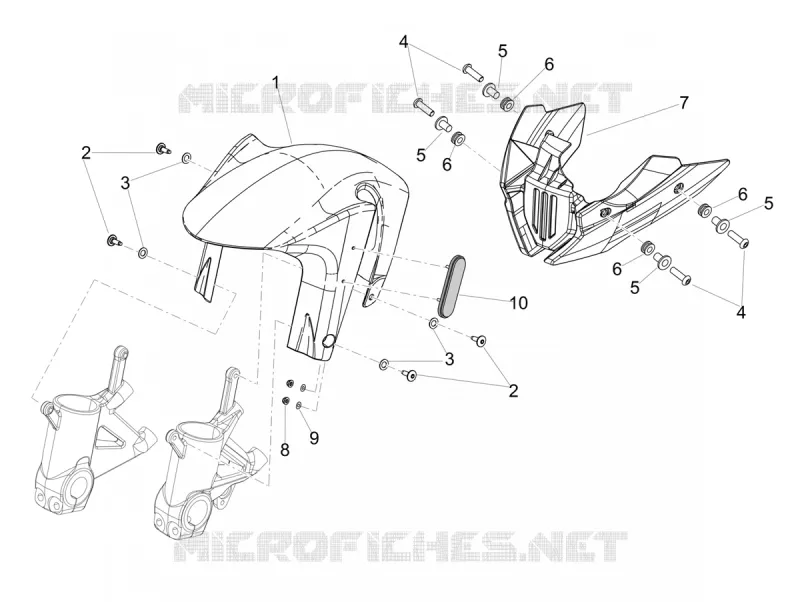

FRONT FENDER - LOWER FAIRING
6
Parts Diagram
Parts Catalog
SWINGARM
by
FRONT WHEEL
FRONT FENDER - LOWER FAIRING
1
2
2
3
3
4
5
5
5
5
6
6
6
6
7
8
9
9
10
1
Photoengraved front mudguard
2B003404
$110,21 Unit Price incl. VAT
2
Screw w/ flange M5x9
AP8152339
$3,65 Unit Price incl. VAT
3
Washer 5,5x15x1,6
AP8150248
$0,16 Unit Price incl. VAT
4
Hex socket screw M6x20
AP8224470
$0,34 Unit Price incl. VAT
5
T bush
AP8121795
$3,38 Unit Price incl. VAT
6
Rubber spacer
AP8112600
$4,49 Unit Price incl. VAT
7
Pillar
859793
$32,34 Unit Price incl. VAT
8
Nut M4
AP8150204
$0,51 Unit Price incl. VAT
9
Washer 4,3X9X0,8
AP8150158
$3,65 Unit Price incl. VAT
10
Reflector, amber
AP8124719
$8,16 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
