1
Engine displacement
900
2
Model
SHIVER
3
Year
2020
4
Trim
Shiver 900 Euro 4 ABS NAVI
5
Parts Catalog

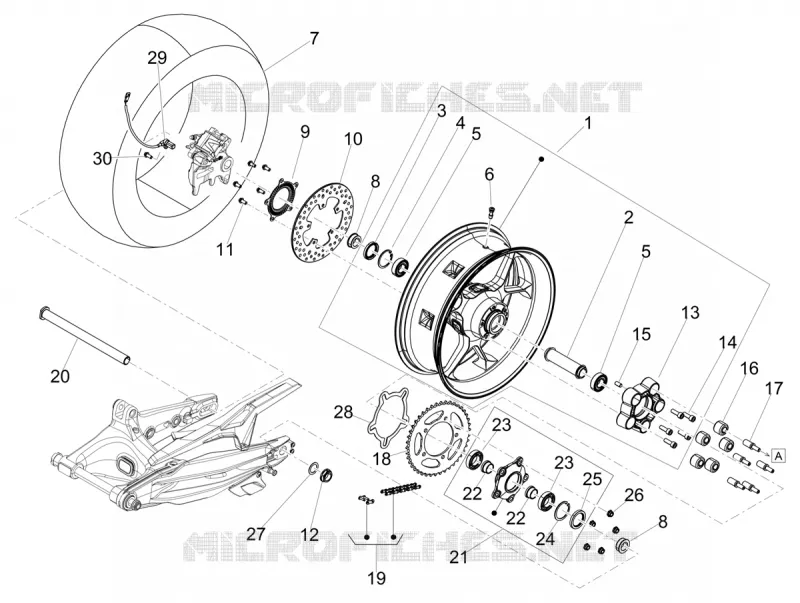

REAR WHEEL
6
Parts Diagram
Parts Catalog
FRONT WHEEL
by
FRONT BRAKE MASTER CYLINDER
REAR WHEEL
28
29
30
1
2
3
4
5
5
6
7
8
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
22
23
23
24
25
26
27
1
Rear wheel, black 6"x17"
896756
$304,50 Unit Price incl. VAT
2
Internal spacer
AP8128170
$36,58 Unit Price incl. VAT
3
Gasket ring 38x52x7
AP8125838
$8,01 Unit Price incl. VAT
4
Snap ring d52
AP8125839
$8,01 Unit Price incl. VAT
5
Bearing 6205-2rs1 25x52x15
AP8110093
$15,98 Unit Price incl. VAT
6
Tubeless tyre valve
AP8101744
$6,30 Unit Price incl. VAT
7
Rear tyre 180/55-ZR17"
85199R
Not Available
8
Rear wheel spacer
AP8121592
$15,31 Unit Price incl. VAT
9
Phonic wheel ABS
890960
$18,18 Unit Price incl. VAT
10
Rear brake disc d.240
B044278
$166,15 Unit Price incl. VAT
11
Screw w/ flange M8x18
894505
Not Available
12
Wheel spindle nut M25x1,5
AP8152324
$7,30 Unit Price incl. VAT
13
Primary drive / Cush drive
2B000639R
$74,28 Unit Price incl. VAT
14
Pre-coated M10x30 SHC screw
2B002444
$3,65 Unit Price incl. VAT
15
Pin 10x20
AP8150463
$3,65 Unit Price incl. VAT
16
Flexible coupling rubber
B043317
$8,65 Unit Price incl. VAT
17
cushion
2B002611
$9,41 Unit Price incl. VAT
18
Chain ring Z=44 AL
CM221709
$80,66 Unit Price incl. VAT
19
Chain cpl conn.link
851612
$133,53 Unit Price incl. VAT
20
Wheel pin
B045422
Not Available
21
Crown holder cpl.
AP8125730
Not Available
22
Spring drive spacer
AP8125732
$29,76 Unit Price incl. VAT
23
Bearing 30x55x13
AP8110081
$16,34 Unit Price incl. VAT
24
Inside circlip d55
AP8121212
$7,81 Unit Price incl. VAT
25
Gasket ring 38x55x7
AP8121213
$8,01 Unit Price incl. VAT
26
DAX nut M10x1,25
2B002634
$6,12 Unit Price incl. VAT
27
Washer 25,2x36x1
AP8152323
$3,70 Unit Price incl. VAT
28
Flange
2B003043
$86,99 Unit Price incl. VAT
29
Sensor ABS
859792
Not Available
30
Screw w/ flange M5x15
AP8152273
$0,16 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
