1
Engine displacement
900
2
Model
SHIVER
3
Year
2020
4
Trim
Shiver 900 Euro 4 ABS NAVI
5
Parts Catalog

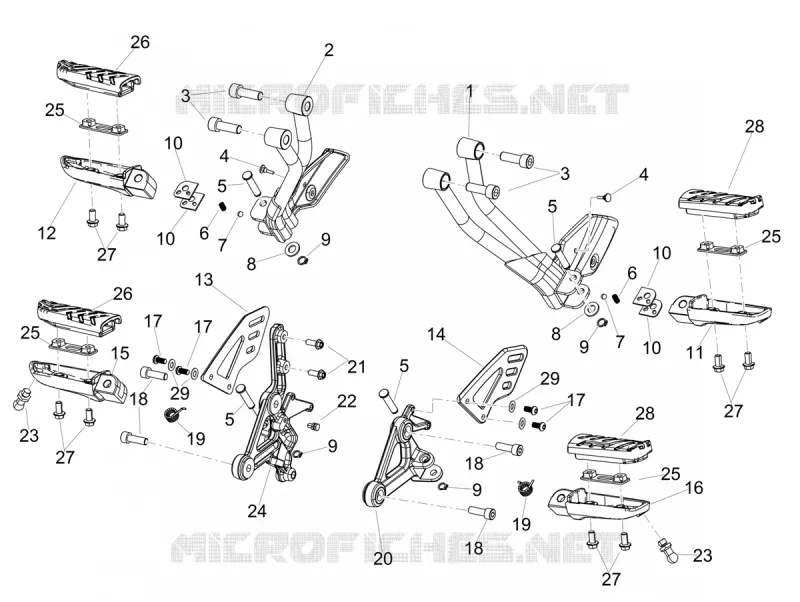

FOOTRESTS
6
Parts Diagram
Parts Catalog
Front fork Kayaba
by
STAND
FOOTRESTS
1
2
3
3
4
4
5
5
5
5
6
6
7
7
8
8
9
9
9
9
10
10
10
10
11
12
13
14
15
16
17
17
17
18
18
18
19
19
20
21
22
23
23
24
25
25
25
25
26
26
27
27
27
27
28
28
29
29
1
LH footrest support
894673
$53,51 Unit Price incl. VAT
2
RH footrest support
894672
$53,51 Unit Price incl. VAT
3
Hex socket screw M10x30
AP8150195
$0,67 Unit Price incl. VAT
4
Cover
293717
$0,19 Unit Price incl. VAT
5
Footrest pin
AP8121566
$5,38 Unit Price incl. VAT
6
Coil compress. spring
AP8121133
$0,53 Unit Price incl. VAT
7
Ball d.7
AP8110110
$0,93 Unit Price incl. VAT
8
Washer 8,4x16x1,6
AP8150017
$3,65 Unit Price incl. VAT
9
Stop ring
AP8152409
$3,65 Unit Price incl. VAT
10
Footrest plate
AP8134451
$2,56 Unit Price incl. VAT
11
Rear footrest, LH
AP8145009
$65,02 Unit Price incl. VAT
12
Rear footrest, RH
AP8145008
$65,02 Unit Price incl. VAT
13
Protect.dte
2B006014
$20,53 Unit Price incl. VAT
14
Protect.gche
2B005861
$29,51 Unit Price incl. VAT
15
RH Foot rests
AP8145034
Not Available
16
LH Foot rests
AP8145035
Not Available
17
Hex socket screw
AP8150340
$3,65 Unit Price incl. VAT
18
Hex socket screw M8x25
AP8150170
$0,27 Unit Price incl. VAT
19
Footrest return spring
AP8221277
$0,92 Unit Price incl. VAT
20
LH front footrest bracket
894585
Not Available
21
Screw w/ flange
598839
$0,09 Unit Price incl. VAT
22
Fixing pin
859946
$4,89 Unit Price incl. VAT
23
Footrest pin
AP8121134
$5,73 Unit Price incl. VAT
24
RH front footrest bracket
894584
Not Available
25
Plate
GU32441210
$2,37 Unit Price incl. VAT
26
Support rubber part
GU32443210
$12,45 Unit Price incl. VAT
27
Screw w/ flange M6x12
AP8152277
$0,25 Unit Price incl. VAT
28
Support rubber part
GU32443211
$12,45 Unit Price incl. VAT
29
Curved spring washer *
AP8150182
$0,08 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
