Engine displacement
180
2
Model
QUASAR
3
Year
2003
4
Trim
Quasar
5
Parts Catalog
Flywheel-Syarter motor
6
Parts Diagram
Parts Catalog
Crankshaft cpl.
by
Flywheel-Syarter motor
28
27
26
25
25
24
24
24
23
23
23
22
21
20
19
18
17
16
15
14
13
12
11
10
9
8
7
6
6
5
4
3
2
1
1
Fan
AP8910742
Not Available
2
Volant cpl.
AP8910834
Not Available
3
Plain washer 12X25X2,3
AP8911063
Not Available
4
Screw w/ flange
AP8911036
Not Available
5
Nut M12
AP8910377
Not Available
6
Screw w/ flange
AP8911086
Not Available
7
Screw w/ flange
AP8911087
Not Available
8
Starter motor cpl.
AP8910837
Not Available
9
Roue libre complète
AP8910824
Not Available
10
Intermediate gear
AP8910828
Not Available
11
Screw w/ flange
AP8911086
Not Available
12
Free wheel gear
AP8910813
Not Available
13
Transmission key 25x4x14
AP8911019
Not Available
14
Plain washer 22X31X2,5
AP8911066
Not Available
15
Écrou M22
AP8911055
Not Available
16
Flywheel
AP8910835
Not Available
17
Stator
AP8910836
Not Available
18
Joint torique
AP8910838
Not Available
19
Écrou
AP8910839
Not Available
20
Sprag clutch housing
AP8910810
Not Available
21
Sprag clutch
AP8910811
Not Available
22
Roller
AP8910825
Not Available
23
Spring
AP8910827
Not Available
24
Lock
AP8910826
Not Available
25
Screw w/ flange
AP8910330
Not Available
26
Roller cage
AP8911121
Not Available
27
Intermediate gear
AP8910829
Not Available
28
Shaft pin
AP8911124
Not Available

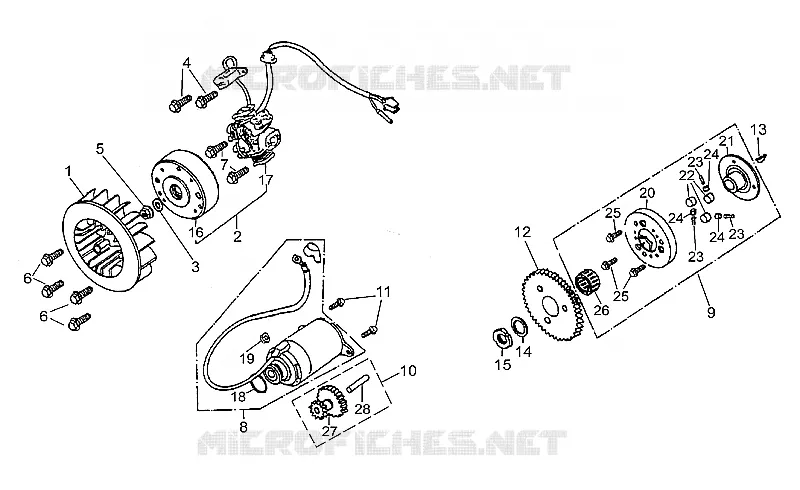

Find the detailed :label APRILIA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original APRILIA part number.
