Engine displacement
180
2
Model
QUASAR
3
Year
2003
4
Trim
Quasar
5
Parts Catalog
Parcel rack- Protection GRIP
6
Parts Diagram
Parts Catalog
Fr/rear parcel rack-Fr/prot.HP
by
Connect. Elem.ts-Footrest
Parcel rack- Protection GRIP
24
16
9
8
8
7
7
7
7
7
6
6
5
4
1
2
3
24
24
24
24
23
22
22
21
21
20
20
19
19
19
19
18
18
18
17
16
16
16
16
15
15
14
14
14
13
12
11
11
10
10
24
1
Tuyau protection
AP8910944
Not Available
2
Protection
AP8910948
Not Available
3
Front lugg.rack
AP8911003
Not Available
4
AR.support p-bagages
AP8911006
Not Available
5
Rear lugg.rack
AP8911005
Not Available
6
Screw w/ flange M6x32
AP8911125
Not Available
7
Nut M6
AP8910311
Not Available
8
Screw w/ flange
AP8910585
Not Available
9
Screw w/ flange M6x22
AP8910430
Not Available
10
Screw w/ flange M8x12
AP8910433
Not Available
11
Self-tap screw
AP8910365
Not Available
12
Front lugg.rack guard
AP8911004
Not Available
13
Rear lugg.rack guard
AP8911007
Not Available
14
Plain washer 6x13x1
AP8910382
Not Available
15
Screw w/ flange M6
AP8910373
Not Available
16
Screw w/ flange M6x16
AP8910427
Not Available
17
Tuyau protection
AP8910946
Not Available
18
Screw w/ flange M6x40
AP8911094
Not Available
19
Screw w/ flange M8x14
AP8910590
Not Available
20
Plain washer 6x18x1
AP8911058
Not Available
21
Nut
AP8910310
Not Available
22
Rubber spacer
AP8911008
Not Available
23
Support p-bagages
AP8911201
Not Available
24
Spring washer M8
AP8911214
Not Available

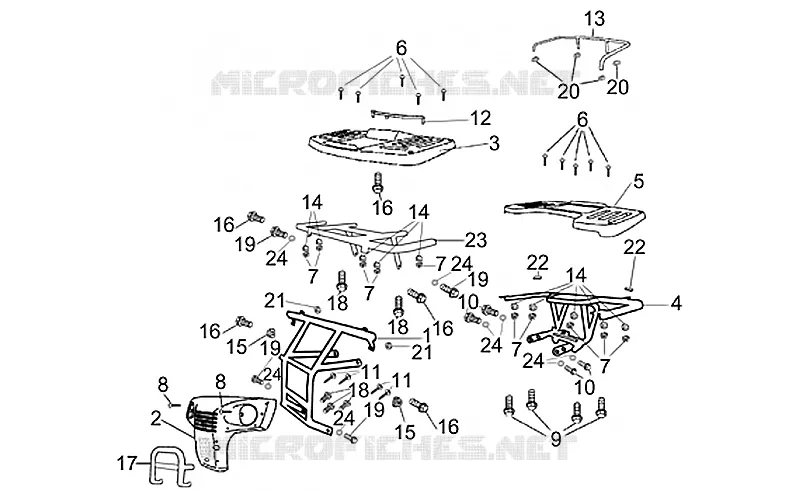

Find the detailed :label APRILIA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original APRILIA part number.
