1
Engine displacement
180
2
Model
QUASAR
3
Year
2003
4
Trim
Quasar
5
Parts Catalog

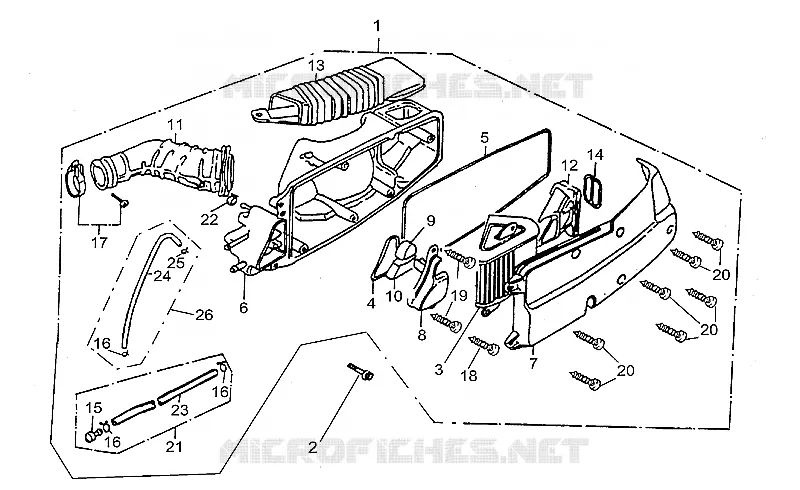

AIR BOX
6
Parts Diagram
Parts Catalog
Cooling unit
by
Exhaust unit-Carburettor
AIR BOX
8
9
10
11
12
13
14
15
16
16
16
17
18
19
20
20
20
21
1
2
3
4
5
6
7
22
23
24
25
26
1
Caisse filtre complète
AP8910709
Not Available
2
Screw w/ flange M6x32
AP8911215
Not Available
3
Air filter
AP8910710
Not Available
4
Gasket
AP8910713
Not Available
5
Gasket
AP8910714
Not Available
6
Air box
AP8910711
Not Available
7
Filter housing cover
AP8910712
Not Available
8
Cover
AP8910716
Not Available
9
Filter A
AP8910717
Not Available
10
Filter B
AP8910718
Not Available
11
Manchon d'aspiration
AP8910719
Not Available
12
Air duct
AP8910720
Not Available
13
Hose
AP8910721
Not Available
14
Guard
AP8910722
Not Available
15
Plug
AP8910724
Not Available
16
Clip 12 mm
AP8910415
Not Available
17
Hose clamp
AP8910653
Not Available
18
Self-tap screw
AP8910506
Not Available
19
Self-tap screw M4x12
AP8911048
Not Available
20
Self-tap screw
AP8911049
Not Available
21
Breather pipe
AP8910723
Not Available
22
Hose clamp
AP8911077
Not Available
23
pipe 8x12x240
AP8911074
Not Available
24
Breather pipe 6x8,5
AP8910610
Not Available
25
Clip 8x0,8
AP8910414
Not Available
26
Breather pipe
AP8910609
Not Available

Find the detailed :label APRILIA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original APRILIA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
