1
Engine displacement
660
2
Model
TUONO
3
Year
2022
4
Trim
Tuono 660 4T 8V Euro 5 ABS
5
Parts Catalog
Front fork Kayaba
6

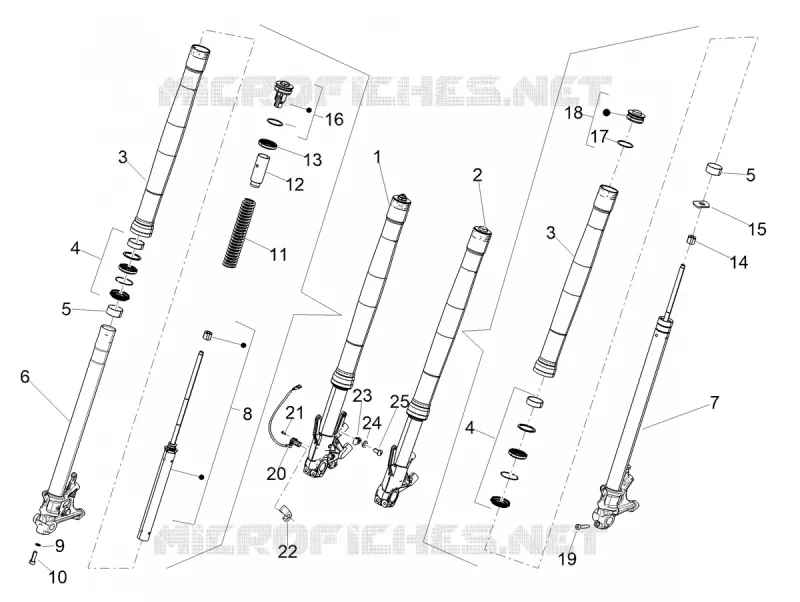

Parts Diagram
Parts Catalog
LOCKS
by
REAR MUDGUARD
Front fork Kayaba
25
24
23
22
21
3
2
1
20
19
18
17
16
15
14
13
12
11
10
9
8
7
6
5
5
4
4
3
1
Tige droite cpl.
2B007921
$1 263,06 Unit Price incl. VAT
2
Tige gauche cpl.
2B007922
$972,06 Unit Price incl. VAT
3
Fourreau
2B008001
$585,46 Unit Price incl. VAT
4
Engine oil seal kit
2B004402
$114,49 Unit Price incl. VAT
5
Bush
2B004403
$14,41 Unit Price incl. VAT
6
Tige droite
2B008002
$695,84 Unit Price incl. VAT
7
Tige gauche
2B007920
$876,41 Unit Price incl. VAT
8
Elém.pompage cpl
2B007913
$379,32 Unit Price incl. VAT
9
Plain washer
2B004406
$3,93 Unit Price incl. VAT
10
screw
2B004407
$4,69 Unit Price incl. VAT
11
Ressort
2B007910
$20,68 Unit Price incl. VAT
12
Tuyau précharge
2B004421
$8,16 Unit Price incl. VAT
13
Washer
2B004422
$3,74 Unit Price incl. VAT
14
Plugs
2B004410
$4,69 Unit Price incl. VAT
15
Nut
2B004411
$3,74 Unit Price incl. VAT
16
Bouchon
2B007996
$263,13 Unit Price incl. VAT
17
Ring
2B004414
Not Available
18
Plug with OR
2B004413
$37,13 Unit Price incl. VAT
19
Hex socket screw
890638
Not Available
20
Sensor ABS
859792
Not Available
21
Hex socket screw M5x16
AP8152268
$3,38 Unit Price incl. VAT
22
Piastrina fermacavo sensore ABS
2B009302
Not Available
23
Fairlead
B046190
$5,00 Unit Price incl. VAT
24
Washer 5,3X10X1
AP8150177
$0,15 Unit Price incl. VAT
25
Hex socket screw M5x12
AP8152267
$0,34 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
