1
Engine displacement
660
2
Model
TUONO
3
Year
2022
4
Trim
Tuono 660 4T 8V Euro 5 ABS
5
Parts Catalog

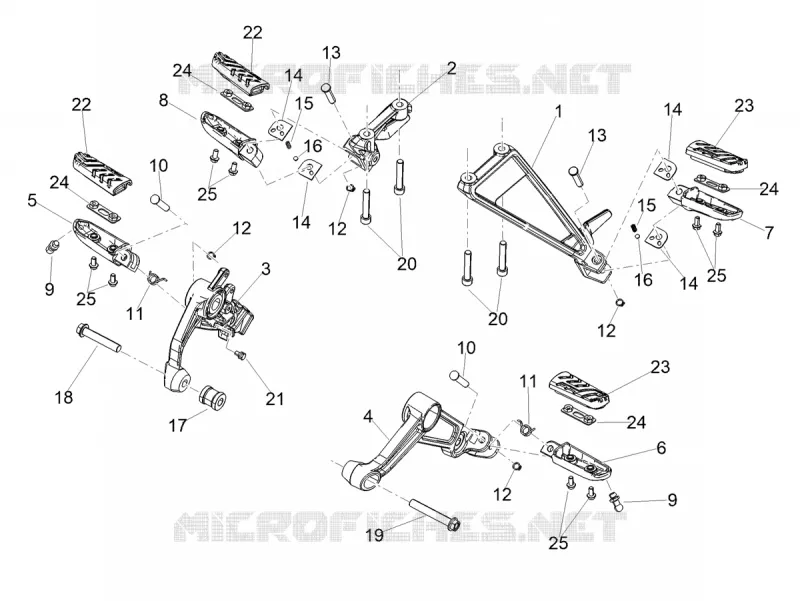

FOOTRESTS
6
Parts Diagram
Parts Catalog
STICKERS
by
LOCKS
FOOTRESTS
25
18
15
14
14
14
13
12
12
12
11
11
10
10
9
9
6
5
4
3
2
1
25
25
25
24
24
24
24
23
23
22
22
21
20
20
19
17
16
16
15
14
13
12
8
7
1
Support r-p. G pass.
2B005206
Not Available
2
Support r-p. pass.dr.
2B005205
Not Available
3
Sup.pl.pilote dte
2B005203
$104,15 Unit Price incl. VAT
4
Sup.pl.pilote gche
2B005202
$104,15 Unit Price incl. VAT
5
RH Foot rests
AP8145034
Not Available
6
LH Foot rests
AP8145035
Not Available
7
Rear footrest, RH
AP8145008
$65,02 Unit Price incl. VAT
8
Rear footrest, LH
AP8145009
$65,02 Unit Price incl. VAT
9
Footrest pin
AP8121134
$5,73 Unit Price incl. VAT
10
Pin
AP8121567
$5,38 Unit Price incl. VAT
11
Footrest return spring
AP8221277
$0,92 Unit Price incl. VAT
12
Stop ring
AP8152409
$3,65 Unit Price incl. VAT
13
Footrest pin
AP8121566
$5,38 Unit Price incl. VAT
14
Footrest plate
AP8134451
$2,56 Unit Price incl. VAT
15
Coil compress. spring
AP8121133
$0,53 Unit Price incl. VAT
16
Ball d.7
AP8110110
$0,93 Unit Price incl. VAT
17
Douille entretoise
2B006346
$6,44 Unit Price incl. VAT
18
Screw w/ flange M10x55
AP8152410
$3,65 Unit Price incl. VAT
19
Hex screw FLANG.M 10
895845
$6,70 Unit Price incl. VAT
20
Hex socket screw M8x45
AP8150164
$3,65 Unit Price incl. VAT
21
Fixing pin
859946
$4,89 Unit Price incl. VAT
22
Support rubber part
GU32443210
$12,45 Unit Price incl. VAT
23
Support rubber part
GU32443211
$12,45 Unit Price incl. VAT
24
Plate
GU32441210
$2,37 Unit Price incl. VAT
25
Screw w/ flange M6x12
AP8152277
$0,25 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
