1
Engine displacement
660
2
Model
TUONO
3
Year
2022
4
Trim
Tuono 660 4T 8V Euro 5 ABS
5
Parts Catalog

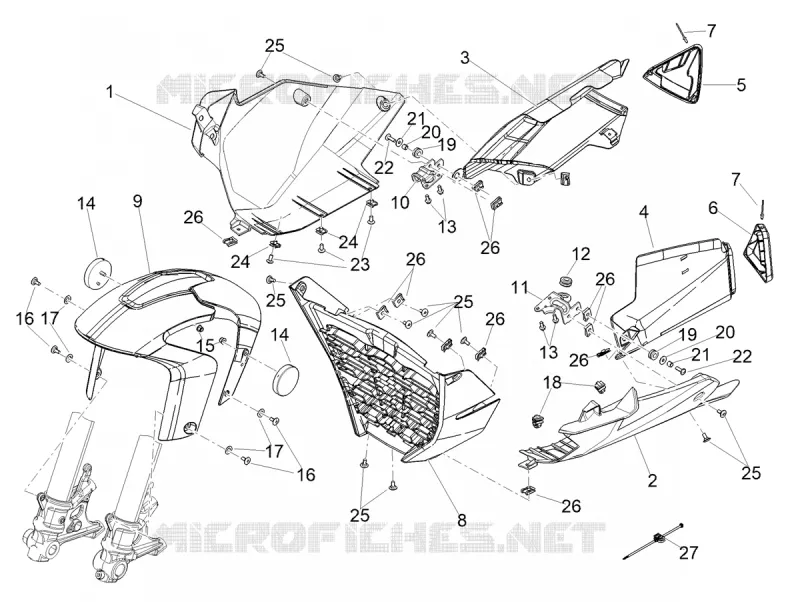

FRONT FENDER - LOWER FAIRING
6
Parts Diagram
Parts Catalog
SWINGARM
by
FRONT FAIRING
FRONT FENDER - LOWER FAIRING
27
26
26
26
26
25
25
25
25
24
21
20
20
17
15
14
13
13
10
7
7
6
5
4
3
2
1
26
26
26
25
24
23
22
22
19
19
18
17
16
16
12
11
9
8
1
Carénage inférieur droit
2B008035
$72,40 Unit Price incl. VAT
2
Carénage inférieur gauche
2B008034
$72,40 Unit Price incl. VAT
3
Protection silencieux D
2B005345
$178,59 Unit Price incl. VAT
4
Protection silencieux G
2B007477
$170,09 Unit Price incl. VAT
5
Closing right
2B007481
$20,24 Unit Price incl. VAT
6
Closing left
2B007479
$20,24 Unit Price incl. VAT
7
Rivet
1B005154
$3,07 Unit Price incl. VAT
8
Butée carénage
2B008033
$41,89 Unit Price incl. VAT
9
Garde-boue avant
2B008635
$44,45 Unit Price incl. VAT
10
Bride droite
2B005548
$13,92 Unit Price incl. VAT
11
Bride gauche
2B005547
$13,92 Unit Price incl. VAT
12
Rubber spacer
AP8120030
$0,85 Unit Price incl. VAT
13
Screw w/ flange M5x12
AP8152272
$0,08 Unit Price incl. VAT
14
Reflector, amber
AP8224163
$9,49 Unit Price incl. VAT
15
Self-locking nut M5
AP8152306
$3,65 Unit Price incl. VAT
16
Hex socket screw M5x9
AP8150500
$1,53 Unit Price incl. VAT
17
Washer 8,5x15x0,8
AP8150376
$0,08 Unit Price incl. VAT
18
Sheet edge spring
CM013203
$0,67 Unit Price incl. VAT
19
Tampon
401605
$4,21 Unit Price incl. VAT
20
Bushing 5,3x8x7,1
AP8221036
$0,27 Unit Price incl. VAT
21
Washer 6,6x18x1,6
841821
$0,37 Unit Price incl. VAT
22
Screw w/ flange M5x16
AP8152298
$0,21 Unit Price incl. VAT
23
Washer 6,6x18x1,6
841821
$0,37 Unit Price incl. VAT
24
Nut D5
00G04401462
$1,10 Unit Price incl. VAT
25
Hex socket screw M5x9
AP8150500
$1,53 Unit Price incl. VAT
26
Clip M5
AP8102375
$0,69 Unit Price incl. VAT
27
Collier
1D002265
$0,69 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
