1
Engine displacement
660
2
Model
TUONO
3
Year
2022
4
Trim
Tuono 660 4T 8V Euro 5 ABS
5
Parts Catalog
GEARBOX
6
Parts Diagram
Parts Catalog
GEAR CHANGE MECHANISM
by
OIL PUMP - OIL FILTER

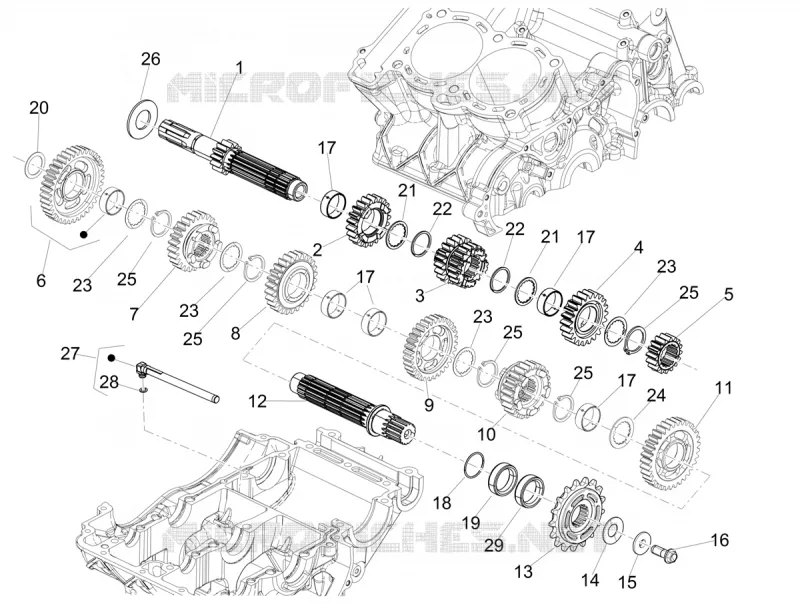

GEARBOX
29
28
27
26
25
25
25
25
25
24
23
23
23
23
22
22
21
21
20
19
18
17
17
17
17
16
15
14
13
12
11
10
9
8
7
6
5
4
3
2
1
1
ARBRE PRIMAIRE BOITE DE VITESSES
1A019499
$116,39 Unit Price incl. VAT
2
Engrenage 5eme vitesse
1A018886
$51,99 Unit Price incl. VAT
3
Engren. 3-4.ème
1A018890
$61,57 Unit Price incl. VAT
4
Engrenage 6e
1A018887
Not Available
5
Pignon 2ème vitesse
1A012118
$36,17 Unit Price incl. VAT
6
Pignon 1.ère
1A016957
$82,75 Unit Price incl. VAT
7
Pignon 5. ème vit.
1A018889
$62,94 Unit Price incl. VAT
8
Pignon de 4e vit.
1A018888
$36,94 Unit Price incl. VAT
9
Pignon de 3e vit.
1A019882
$61,49 Unit Price incl. VAT
10
Engrenage 6e
1A018086
$65,67 Unit Price incl. VAT
11
Pignon 2e vitesse
1A018085
$38,31 Unit Price incl. VAT
12
Arbre secondaire
1A012117
$98,27 Unit Price incl. VAT
13
Pignon Z-17
2B006795
$79,65 Unit Price incl. VAT
14
Belleville spring
2B002193
$3,38 Unit Price incl. VAT
15
T bushing
2B002191
$10,04 Unit Price incl. VAT
16
Screw w/ flange M10x25
B043047
$3,38 Unit Price incl. VAT
17
Moveable bush
849308
$3,53 Unit Price incl. VAT
18
Gasket OR
871901
$4,89 Unit Price incl. VAT
19
Spacer
974558
$12,54 Unit Price incl. VAT
20
Rondelle d'épaulement
1A017027
$4,11 Unit Price incl. VAT
21
Clearance washer
849424
$3,70 Unit Price incl. VAT
22
Snap ring
849426
$2,02 Unit Price incl. VAT
23
Clearance washer
849310
$2,01 Unit Price incl. VAT
24
Clearance washer
849309
$2,01 Unit Price incl. VAT
25
Snap ring
849311
$2,11 Unit Price incl. VAT
26
Washer
974320
$2,11 Unit Price incl. VAT
27
Tuyau de lubrification
1A016199
$51,70 Unit Price incl. VAT
28
O-ring
224035
$2,41 Unit Price incl. VAT
29
Entretoise
2B006792
$7,74 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
