1
Engine displacement
660
2
Model
TUONO
3
Year
2022
4
Trim
Tuono 660 4T 8V Euro 5 ABS
5
Parts Catalog

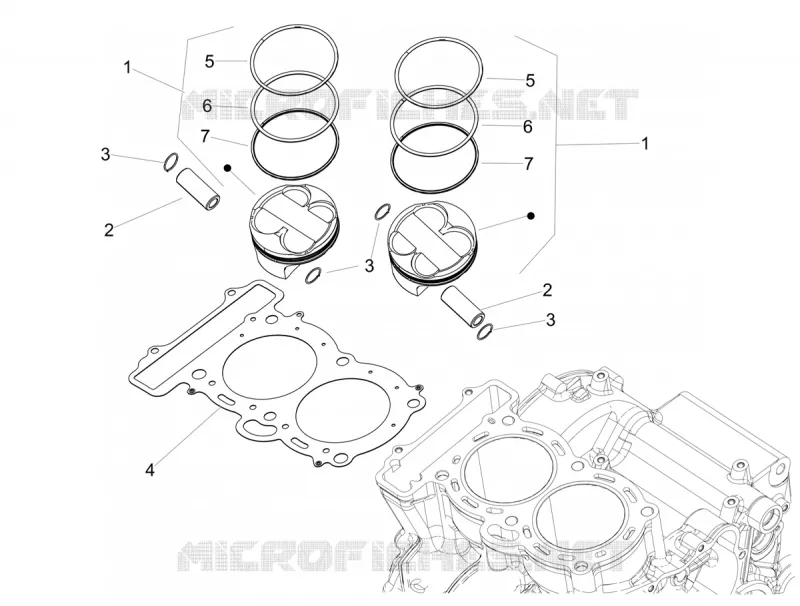

CYLINDER - PISTON
6
Parts Diagram
Parts Catalog
CENTRAL ELECTRICAL SYSTEM
by
CRANKSHAFT
CYLINDER - PISTON
7
6
6
5
5
4
3
3
3
2
2
1
1
1
1
7
1
Piston compl.cat.A
1A0162040A
$321,88 Unit Price incl. VAT
1
Piston compl.cat.B
1A0162040B
$321,88 Unit Price incl. VAT
2
Piston pin
2A000630
$56,11 Unit Price incl. VAT
3
Stop ring
2A000450
$6,60 Unit Price incl. VAT
4
Joint culasse/cylindre
1A011923
$71,86 Unit Price incl. VAT
5
Piston ring
2A000734
$28,21 Unit Price incl. VAT
6
Piston ring
2A000735
$21,26 Unit Price incl. VAT
7
Piston ring
2A000739
$24,30 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
