1
Engine displacement
660
2
Model
TUONO
3
Year
2022
4
Trim
Tuono 660 4T 8V Euro 5 ABS
5
Parts Catalog
Cooling system
6
Parts Diagram
Parts Catalog
FUEL EVAP SYSTEM
by
IGNITION UNIT - FLYWHEEL

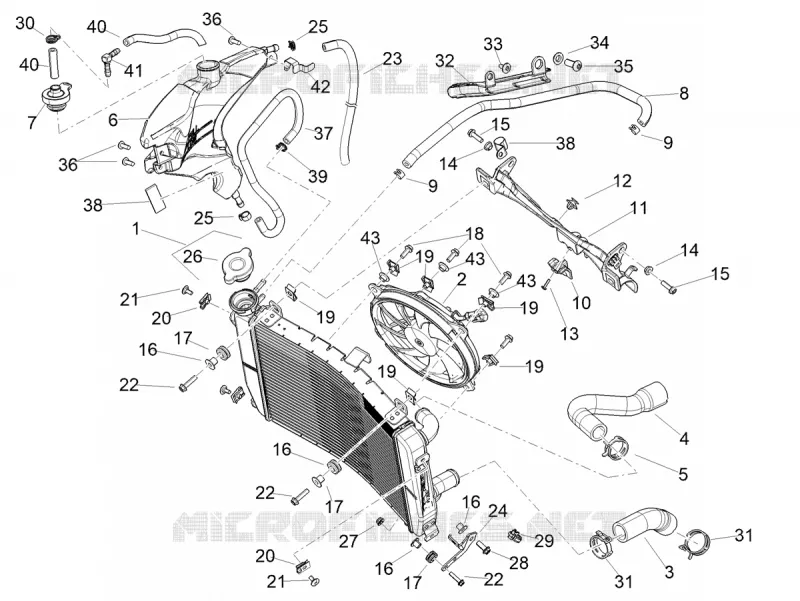

Cooling system
24
23
22
43
43
43
42
41
40
40
39
38
38
37
36
36
35
34
33
32
31
31
30
29
28
27
26
25
25
22
22
20
20
19
19
19
19
18
17
17
17
16
16
16
15
15
14
14
13
12
11
10
9
9
8
7
6
5
4
3
2
1
21
21
19
16
1
Radiateur d'eau
2B006694
$269,05 Unit Price incl. VAT
2
Ventilateur électrique
2D000572
$112,90 Unit Price incl. VAT
3
Tuyau de refroidissement radiateur-pompe
2B005285
$14,33 Unit Price incl. VAT
4
Tube refroidissement moteur-radiateur
2B005286
$18,78 Unit Price incl. VAT
5
Hose clamp
CM269609
$5,20 Unit Price incl. VAT
6
Réservoir d'expansion
2B008021
$44,20 Unit Price incl. VAT
7
Expansion tank plug
899642
$11,80 Unit Price incl. VAT
8
Tuyau
2B007124
$10,00 Unit Price incl. VAT
9
White hose clip d.13x6
AP8102764
$1,86 Unit Price incl. VAT
10
Bride
2B007482
$9,99 Unit Price incl. VAT
11
Support radiateur
2B005580
$14,13 Unit Price incl. VAT
12
Instrument support
890760
$0,51 Unit Price incl. VAT
13
Self-tap screw 3,9x14
AP8150413
$0,08 Unit Price incl. VAT
14
Bush
AP8221129
$3,65 Unit Price incl. VAT
15
Screw w/ flange M6x20
AP8152279
$0,51 Unit Price incl. VAT
16
Douille en T
2B008123
$5,14 Unit Price incl. VAT
17
Rubber spacer
AP8120030
$0,85 Unit Price incl. VAT
18
M6x20 pre-coated hex head screw
2B004560
$0,34 Unit Price incl. VAT
19
Spring plate M6
254485
$0,34 Unit Price incl. VAT
20
Clip M5
AP8102375
$0,69 Unit Price incl. VAT
21
Hex socket screw M5x9
AP8150500
$1,53 Unit Price incl. VAT
22
Screw w/ flange M6x25
AP8152280
$0,25 Unit Price incl. VAT
23
Fuel pipe 5,5x10
AP8120952
Not Available
24
Patte
2B005581
$14,13 Unit Price incl. VAT
25
Hose clamp D11,3
AP8102378
$0,21 Unit Price incl. VAT
26
Bouchon radiateur
2B007772
$13,12 Unit Price incl. VAT
27
Self-locking nut M6
AP8152299
$0,34 Unit Price incl. VAT
28
Screw w/ flange M8x20
AP8152286
$0,25 Unit Price incl. VAT
29
Sheet edge spring
CM013203
$0,67 Unit Price incl. VAT
30
Hose clamp
AP8102520
$0,26 Unit Price incl. VAT
31
Hose clamp
CM269609
$5,20 Unit Price incl. VAT
32
Support tuyaux eau
2B008121
$4,49 Unit Price incl. VAT
33
Hex socket screw M5x9
AP8150500
$1,53 Unit Price incl. VAT
34
T bush 8,2x12x4
AP8121096
$1,70 Unit Price incl. VAT
35
Hex socket screw M8x20
AP8152058
$3,70 Unit Price incl. VAT
36
Self-tap screw 5x14
AP8150509
$0,51 Unit Price incl. VAT
37
Durit d'essence
2B008511
$7,34 Unit Price incl. VAT
38
Hose clamp
482290
$0,50 Unit Price incl. VAT
39
Hose clamp D10,1
AP8101595
$0,32 Unit Price incl. VAT
40
Fuel pipe 5,5x10
AP8220325
Not Available
41
Blinker L
2B008778
$3,84 Unit Price incl. VAT
42
Tube guide plate
2B009087
$4,27 Unit Price incl. VAT
43
T bush
AP8221349
$2,95 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
