Parts Catalog
REAR ELECTRICAL SYSTEM
6
Parts Diagram
Parts Catalog
CENTRAL ELECTRICAL SYSTEM
by
WATERPUMP
REAR ELECTRICAL SYSTEM
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
1
Câblage lumière plaque
2D000627
$37,15 Unit Price incl. VAT
2
Batterie au lithium
2D000579
$664,86 Unit Price incl. VAT
3
Bride
898252
$1,48 Unit Price incl. VAT
4
Coautchouc pour support
AP8144553
$5,38 Unit Price incl. VAT
5
Entretoise batterie
2B006798
$2,86 Unit Price incl. VAT
6
Cable batterie
2D000158
$66,10 Unit Price incl. VAT
7
Fusible
CM225725
$3,02 Unit Price incl. VAT
8
Fusible
CM225707
$7,23 Unit Price incl. VAT
9
Fusible
CM225710
$7,23 Unit Price incl. VAT
10
FUSIBLE
CM225715
$7,23 Unit Price incl. VAT
11
Fusible
CM225720
$7,34 Unit Price incl. VAT
12
Fusible
CM225725
$3,02 Unit Price incl. VAT
13
Collier
640879
$0,92 Unit Price incl. VAT
14
Collier
AP8120657
$0,34 Unit Price incl. VAT
15
Relais
582690
$27,87 Unit Price incl. VAT
16
Collier él.
860744
$3,38 Unit Price incl. VAT
17
Black hose D12*
AP8102151
Not Available
18
PASSE CABLE
294754
$0,51 Unit Price incl. VAT
19
Embout appui batterie lat.
AP8144552
$1,26 Unit Price incl. VAT

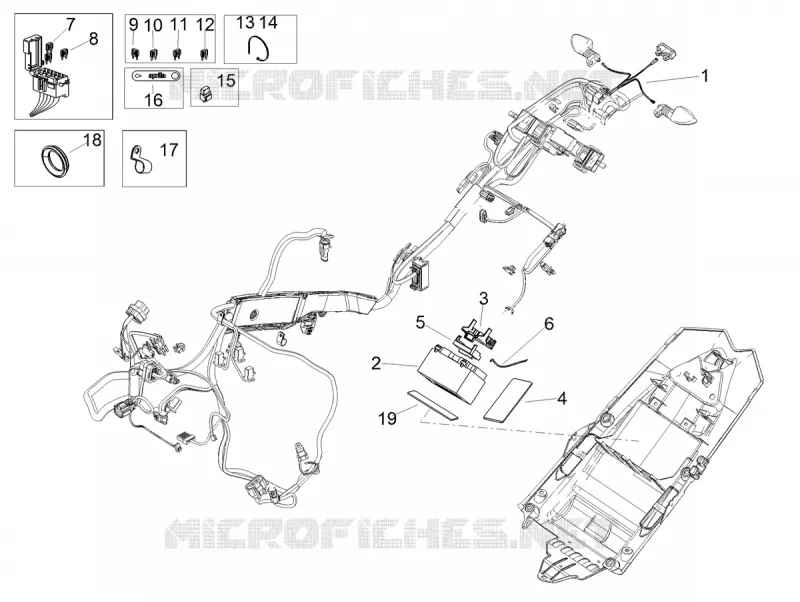

Find the detailed REAR ELECTRICAL SYSTEM APRILIA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original APRILIA part number.
