Engine displacement
1100
2
Model
TUONO
3
Year
2023
4
Trim
Tuono V4 Factory 1100 E5 Superpole ABS
5
Parts Catalog
CYLINDER HEAD - VALVES
6
Parts Diagram
Parts Catalog
Cylinder head cover
by
PAD
CYLINDER HEAD - VALVES
1
2
2
3
3
3
3
3
3
3
3
4
4
4
4
5
5
5
5
5
5
5
6
6
7
7
8
8
8
9
9
10
10
11
11
11
11
12
12
13
13
14
15
15
15
15
16
16
17
17
18
18
19
19
19
19
19
20
20
21
21
22
22
23
23
24
24
25
25
26
26
27
27
1
Tête cylindre cpl.
8986822
$1 712,50 Unit Price incl. VAT
2
GOUJON
857035
$1,44 Unit Price incl. VAT
3
Hex socket screw M6x45
857085
$0,53 Unit Price incl. VAT
4
Joint
857042
$1,31 Unit Price incl. VAT
5
Goujon
411209
$2,89 Unit Price incl. VAT
6
Ecrou bridé
897434
$12,54 Unit Price incl. VAT
7
Rondelle 19x10,5x1,6
857208
$2,22 Unit Price incl. VAT
8
Gicleur carter
825597
$0,94 Unit Price incl. VAT
9
Soupape d’admission
857018
$29,63 Unit Price incl. VAT
10
CAPUCHON DE VALVE
2A000546
$118,35 Unit Price incl. VAT
11
JOINT
436438
$1,34 Unit Price incl. VAT
12
Kit ressort de soupape d'admission
2R000041
$51,45 Unit Price incl. VAT
13
Kit ressort de soupape d'échappement
2R000042
$39,00 Unit Price incl. VAT
14
Vis
478895
$0,50 Unit Price incl. VAT
15
Demi-clavette
857024
$3,03 Unit Price incl. VAT
16
Godet
857067
$43,68 Unit Price incl. VAT
17
Plaquette
857046
$4,89 Unit Price incl. VAT
18
Plaquette;
857047
$2,77 Unit Price incl. VAT
19
Soupape air
857045
$19,14 Unit Price incl. VAT
20
Couvercle
857044
$29,48 Unit Price incl. VAT
21
Godet soupape d'admission
2A000337
$70,70 Unit Price incl. VAT
22
Tuyau huile
857017
$38,17 Unit Price incl. VAT
23
ANNEAU
873097
$1,51 Unit Price incl. VAT
24
Angular union
857016
Not Available
25
Vis
1A003153
$3,65 Unit Price incl. VAT
26
Joint
857083
$0,84 Unit Price incl. VAT
27
VIS
857048
$3,70 Unit Price incl. VAT

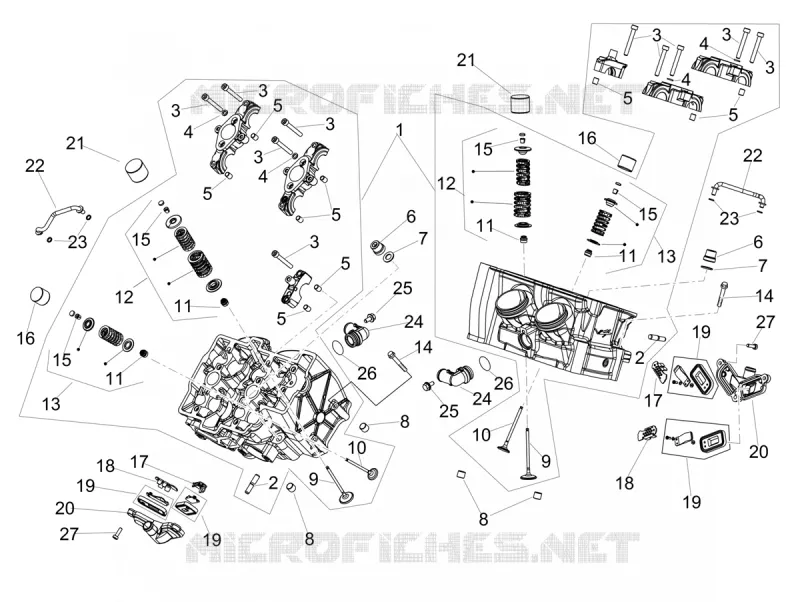

Find the detailed CYLINDER HEAD - VALVES APRILIA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original APRILIA part number.
