Engine displacement
1100
2
Model
TUONO
3
Year
2023
4
Trim
Tuono V4 Factory 1100 E5 Superpole ABS
5
Parts Catalog
CRANKSHAFT
6
Parts Diagram
Parts Catalog
CRANKCASES I
by
OIL PUMP - OIL FILTER
CRANKSHAFT
1
1
1
1
1
1
1
1
1
1
1
1
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
3
3
3
3
4
4
4
4
4
4
4
4
4
4
4
4
4
4
4
4
4
4
4
4
4
5
6
7
7
7
8
8
8
9
9
10
11
12
13
14
15
16
17
18
1
Vilebrequin
1A017564OO
$1 333,74 Unit Price incl. VAT
1
Vilebrequin
1A017564MM
$1 333,74 Unit Price incl. VAT
1
Vilebrequin HH
1A017564HH
Not Available
1
Vilebrequin
1A017564LL
$1 333,74 Unit Price incl. VAT
1
Vilebrequin
1A017564NN
$1 333,74 Unit Price incl. VAT
1
Vilebrequin
1A017564PP
$1 450,55 Unit Price incl. VAT
2
Connecting rod, selection class "B"
2A000622BB
$536,25 Unit Price incl. VAT
2
Connecting rod, selection class "D"
2A000622DD
Not Available
2
Missing description
2A000622EE
Not Available
2
Missing description
2A000622AA
Not Available
2
Connecting rod, selection class "C"
2A000622CC
Not Available
3
Connecting rod screw
B045844
$22,46 Unit Price incl. VAT
4
Connecting rod half-bearing, green
2A0008370V
Not Available
4
Connecting rod half-bearing, blue
2A0008370B
Not Available
4
Connecting rod half-bearing, yellow
2A0008370G
Not Available
5
Rondelle
897478
$3,36 Unit Price incl. VAT
6
Vis bride
857206
$7,30 Unit Price incl. VAT
7
Demi Roulement
8571320B
$49,04 Unit Price incl. VAT
7
Demi Roulement
8571320V
$49,04 Unit Price incl. VAT
7
Demi Roulement
8571320G
$49,04 Unit Price incl. VAT
8
Demi Roulement
8571300V
$49,04 Unit Price incl. VAT
8
Demi Roulement
8571300G
$49,04 Unit Price incl. VAT
8
Demi Roulement
8571300B
$49,04 Unit Price incl. VAT
9
Volant magnétique complet
1A018304
$431,70 Unit Price incl. VAT
10
Engrenage
899484
$197,65 Unit Price incl. VAT
11
Bague
B043204
$18,14 Unit Price incl. VAT
12
Rotor complet
1A018303
$115,48 Unit Price incl. VAT
13
Stator complet
1A016388
$234,45 Unit Price incl. VAT
14
Entretoise
897474
$4,90 Unit Price incl. VAT
15
Vis
1A002951
$3,65 Unit Price incl. VAT
16
Vis
1A002950
$1,36 Unit Price incl. VAT
17
Plaque de fixation
1A016340
$2,96 Unit Price incl. VAT
18
CLAVETTE
000267
$1,19 Unit Price incl. VAT

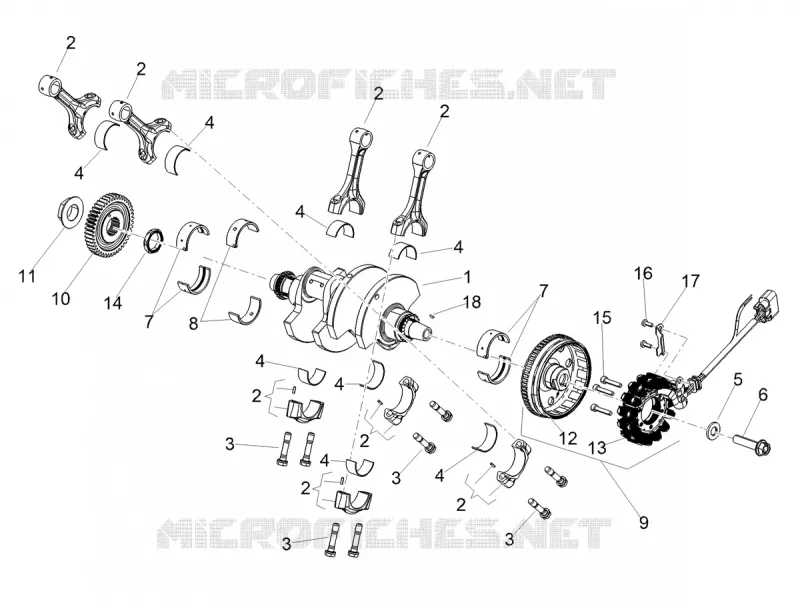

Find the detailed CRANKSHAFT APRILIA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original APRILIA part number.
