1
Engine displacement
1000
2
Model
RSV4
3
Year
2011
4
Trim
RSV4 1000 APRC Factory STD - SE
5
Parts Catalog
Front body I
6
Parts Diagram
Parts Catalog
Rear master cylinder
by
Swing arm
Front body I
1
2
3
3
3
4
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
18
18
18
18
19
19
20
20
20
21
21
21
22
22
23
23
23
23
23
24
24
25
26
27
28
29
1
Ferm.carène s.d.p.n.
85881300XN6
$88,83 Unit Price incl. VAT
2
Upper LH fairing, black
89732600XN6
$180,30 Unit Price incl. VAT
3
Ecrou bridé
AP8150506
$3,65 Unit Price incl. VAT
4
Eponge adhésive
AP8117033
$5,38 Unit Price incl. VAT
5
Glace orange G
AP8104759
$28,44 Unit Price incl. VAT
5
LH transparent lens
AP8127700
$10,35 Unit Price incl. VAT
6
JOINT
893936
$5,43 Unit Price incl. VAT
7
Front fairing, red
89857000XR4
Not Available
8
Décalco
898533
$3,30 Unit Price incl. VAT
9
Décalco
893763
$0,44 Unit Price incl. VAT
10
Décalco
893764
$0,44 Unit Price incl. VAT
11
Coupole
893257
$111,04 Unit Price incl. VAT
11
Windshield
894630
Not Available
12
RH rearview mirror
899202
$124,39 Unit Price incl. VAT
12
RH rearview mirror
890878
Not Available
12
RH rearview mirror
894519
Not Available
13
Miroir rétroviseur d
AP8104755
$43,20 Unit Price incl. VAT
13
Miroir rétroviseur dte
899062
$35,91 Unit Price incl. VAT
14
JOINT
893935
$5,43 Unit Price incl. VAT
15
RH transparent lens
AP8127699
$10,35 Unit Price incl. VAT
15
Glace orange D
AP8104760
$28,44 Unit Price incl. VAT
16
LH rearview mirror
890879
Not Available
16
LH rearview mirror
894520
Not Available
16
LH rearview mirror
899203
Not Available
17
Miroir rétroviseur gche
899063
$35,91 Unit Price incl. VAT
17
Miroir rétroviseur g
AP8104754
$43,20 Unit Price incl. VAT
18
screw
893838
Not Available
19
Caoutchouc avec insert
AP8144564
$4,49 Unit Price incl. VAT
20
screw M4x12
893839
Not Available
21
Rondelle nylon
AP8144565
$3,65 Unit Price incl. VAT
22
Lampe RY10W 12V
AP8127489
$6,35 Unit Price incl. VAT
22
AMPOULE 12V/10W
181746
$3,28 Unit Price incl. VAT
23
Anneau pare-pouss.avant
AP8120622
$3,65 Unit Price incl. VAT
24
Caoutchouc
AP8220186
$0,62 Unit Price incl. VAT
25
Décalco
898788
$2,28 Unit Price incl. VAT
26
Décalco
898789
$2,28 Unit Price incl. VAT
27
Décalco
898534
$3,73 Unit Price incl. VAT
28
Décalco
898535
$3,73 Unit Price incl. VAT
29
Décalco
895335
$2,81 Unit Price incl. VAT

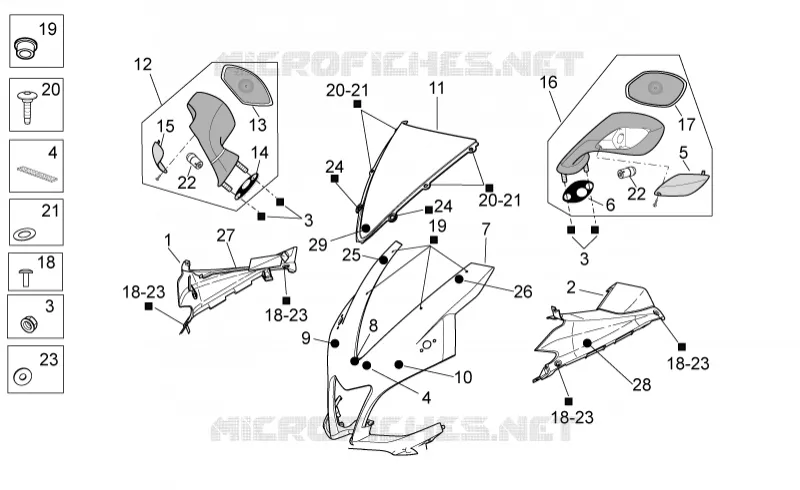

Find the detailed Front body I APRILIA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original APRILIA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
