1
Engine displacement
1000
2
Model
RSV4
3
Year
2011
4
Trim
RSV4 1000 APRC Factory STD - SE
5
Parts Catalog
Rear body II
6
Parts Diagram
Parts Catalog
Frame II
by
Foot rests
Rear body II
1
2
3
4
5
6
7
8
9
10
10
11
11
12
12
13
14
15
16
16
17
18
18
19
20
21
22
23
1
Vis taraud pour plast. Inox
AP8150413
$0,08 Unit Price incl. VAT
2
Porte-plaque
858840
$15,05 Unit Price incl. VAT
3
Porte-plaque
897482
$13,57 Unit Price incl. VAT
4
Vis SWP crois. brid.
AP8152329
$0,69 Unit Price incl. VAT
5
Number-plate light
AP8127098
Not Available
6
Catadioptre feu arrière
AP8112916
$6,35 Unit Price incl. VAT
7
Ecrou autofr. bas
AP8150204
$0,51 Unit Price incl. VAT
8
Rondelle
AP8150158
$3,65 Unit Price incl. VAT
9
Garde-boue arrière
890969
$279,85 Unit Price incl. VAT
10
Vis
AP8152137
$0,23 Unit Price incl. VAT
11
Rondelle
AP8150179
$0,08 Unit Price incl. VAT
12
Rondelle élastique courbe
AP8150182
$0,08 Unit Price incl. VAT
13
Douille
894566
$2,02 Unit Price incl. VAT
14
Indicateur direction
894945
$15,46 Unit Price incl. VAT
14
Indicateur direction droite
894943
$13,91 Unit Price incl. VAT
15
Indicateur direction gauche
894944
$13,91 Unit Price incl. VAT
15
Indicateur direction
894946
$15,46 Unit Price incl. VAT
16
Vis
AP8152108
$0,16 Unit Price incl. VAT
17
Ecrou autobloqu.
AP8152299
$0,34 Unit Price incl. VAT
18
Lampe RY10W 12V
AP8127489
$6,35 Unit Price incl. VAT
18
AMPOULE 12V/10W
181746
$3,28 Unit Price incl. VAT
19
Bouchon
894657
$0,19 Unit Price incl. VAT
20
Vis
AP8150522
$3,65 Unit Price incl. VAT
21
Caoutchouc
AP8112600
$4,49 Unit Price incl. VAT
22
Eponge
AP8117258
$5,38 Unit Price incl. VAT
23
Câblage feu AR
858868
$13,24 Unit Price incl. VAT

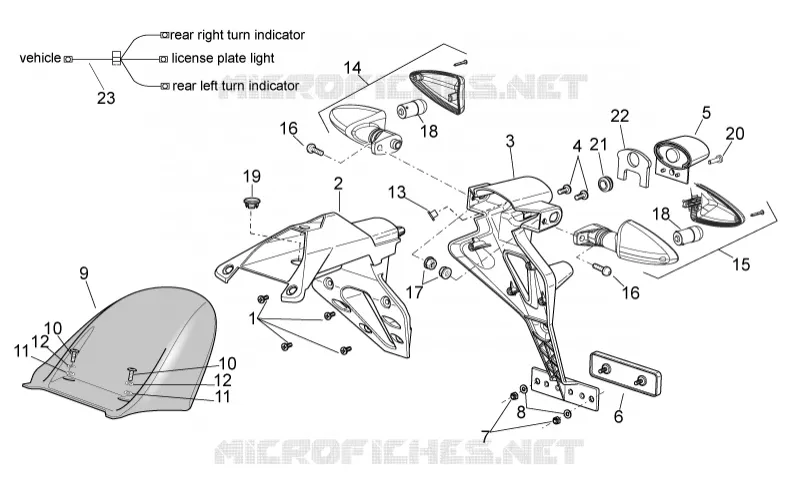

Find the detailed Rear body II APRILIA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original APRILIA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
