1
Engine displacement
1000
2
Model
RSV4
3
Year
2011
4
Trim
RSV4 1000 APRC Factory STD - SE
5
Parts Catalog
Gear box
6
Parts Diagram
Parts Catalog
Frame I
by
Handlebar - Controls
Gear box
1
2
3
4
4
5
6
6
6
7
8
8
8
8
9
9
10
11
12
13
13
14
14
14
15
16
16
16
17
17
18
19
20
21
22
23
24
25
25
26
27
28
28
28
29
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
1
Maintenance cambio
857268
Not Available
2
Roulement
898634
$28,77 Unit Price incl. VAT
3
Roulement
898635
$28,77 Unit Price incl. VAT
4
Plaq. retien roul.
AP9150145
$14,30 Unit Price incl. VAT
5
Plaquette
857271
$2,43 Unit Price incl. VAT
6
Vis FHC
AP8152166
$3,65 Unit Price incl. VAT
7
Roulement à billes 61905 - 25X42X9
857250
$7,81 Unit Price incl. VAT
8
Ressort
857175
$1,08 Unit Price incl. VAT
9
Tige
857284
$40,70 Unit Price incl. VAT
10
Arbre secondaire
857236
$231,90 Unit Price incl. VAT
11
Engrenage
897458
$81,36 Unit Price incl. VAT
12
Rondelle 30X40X1,5
857308
$3,60 Unit Price incl. VAT
13
Rondelle
857247
$5,76 Unit Price incl. VAT
14
Anneau élastique
857248
$3,05 Unit Price incl. VAT
15
Cage à rouleaux 30X35X13
857309
$59,79 Unit Price incl. VAT
16
Cage à rouleaux 24X28X13
857233
$59,79 Unit Price incl. VAT
17
Cage à rouleaux
857244
$59,79 Unit Price incl. VAT
18
Engrenage 5°
857241
$73,33 Unit Price incl. VAT
19
Engrenage
897460
$85,80 Unit Price incl. VAT
20
Engrenage
897459
$59,00 Unit Price incl. VAT
21
Engrenage 6°
857242
$139,22 Unit Price incl. VAT
22
Engrenage 4°
857240
$97,61 Unit Price incl. VAT
23
Rondelle 24X35X1,5
857246
$7,37 Unit Price incl. VAT
24
RONDELLE
857245
$4,04 Unit Price incl. VAT
25
Fork
857328
Not Available
26
Roulement
898633
$45,53 Unit Price incl. VAT
27
Fork
857185
Not Available
28
Anneau élastique
857232
$3,05 Unit Price incl. VAT
29
Rondelle
857234
$5,76 Unit Price incl. VAT
30
Engr. 6e sur prim.
857231
$103,19 Unit Price incl. VAT
31
Engr. 5e sur prim.
857230
$99,41 Unit Price incl. VAT
32
Engrenage
897455
$31,14 Unit Price incl. VAT
33
Engrenage
897456
$95,54 Unit Price incl. VAT
34
Arbre primaire
897454
$156,03 Unit Price incl. VAT
35
Tambour
857251
$143,80 Unit Price incl. VAT
36
Index washer
857123
Not Available
37
Levier
857274
$36,03 Unit Price incl. VAT
38
Rondelle
AP9150051
$0,59 Unit Price incl. VAT
39
VITE CON BOCCOLA M6X1
AP9150006
$12,36 Unit Price incl. VAT
40
Spring
857278
Not Available
41
Arbre chang.+ress. cpl
857253
$148,80 Unit Price incl. VAT
42
Vis bride
AP8152318
$4,36 Unit Price incl. VAT
43
Pignon
890827
$58,73 Unit Price incl. VAT
44
RESSORT
854909
$7,61 Unit Price incl. VAT
45
Douille
854951
$14,18 Unit Price incl. VAT
46
O-ring
857279
Not Available
47
CAPTEUR THERMO
857265
$66,35 Unit Price incl. VAT
48
Vis bride
AP8152280
$0,25 Unit Price incl. VAT
49
Vis
899599
$8,44 Unit Price incl. VAT
50
Roulement
898636
$30,14 Unit Price incl. VAT
51
Ressort
857260
$22,62 Unit Price incl. VAT
52
Spring
857261
Not Available

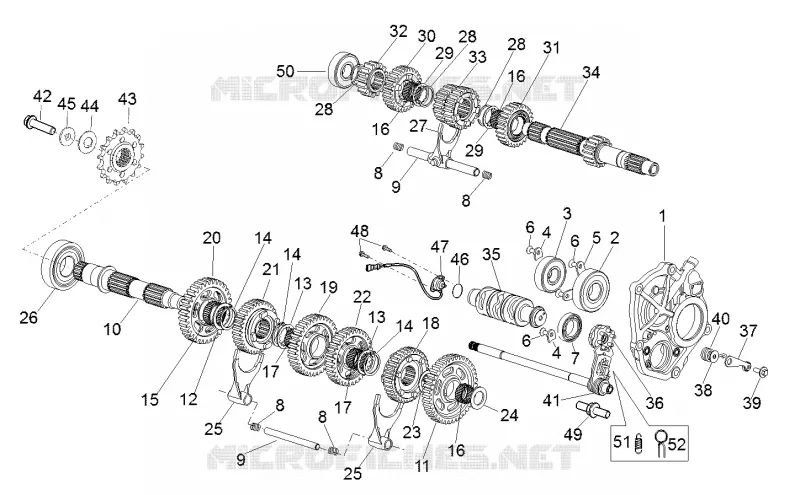

Find the detailed Gear box APRILIA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original APRILIA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
